let me see your studio!

  • Thread starter Thread starter Giganova
  • Start date Start date

good idea to post pix?

  • this thread suxxxx

    Votes: 46 3.6%
  • not interested in peeking into other's bedrooms

    Votes: 19 1.5%
  • is that an Ozbourne poster on the wall?? Yikes!

    Votes: 62 4.8%
  • man -- when did you clean up the last time?

    Votes: 185 14.4%
  • I am so jeleous! Can I move into your house??

    Votes: 970 75.7%

  • Total voters
    1,282
About the back wall...don't put diffusion back there. You need low end absorption on the back wall or you're going to have BIG problems at the listening position.
Not saying your right or wrong, but what kind of empircal proof do you have to back up your position. I've seen this kind of opinion stated back and forth between diffusion and absorption ever since Everest published his first handbook of acoustics in the early 80's. As I see it, its all a bunch of acoustician rubbish. BACK AND FORTH, depending on WHO says it, how big his reputation is, and who his clients are. The fact is...its ALL arbitrary, because its ALL SUBJECTIVE.:rolleyes: Now, if there were an empirical relationship between sales of music, and recording studio design...now you would have something to stand on. But noooooooooooo...there isn't ONE SHRED OF PROOF THAT ANY OF THIS MEANS A GODDAMMED THING! other than sales of absorbers:rolleyes:

Not saying your right or wrong, but what kind of empircal proof do you have to back up your position. I've seen this kind of opinion stated back and forth between diffusion and absorption ever since Everest published his first handbook of acoustics in the early 80's. As I see it, its all a bunch of acoustician rubbish. BACK AND FORTH, depending on WHO says it, how big his reputation is, and who his clients are. The fact is...its ALL arbitrary, because its ALL SUBJECTIVE.:rolleyes: Now, if there were an empirical relationship between sales of music, and recording studio design...now you would have something to stand on. But noooooooooooo...there isn't ONE SHRED OF PROOF THAT ANY OF THIS MEANS A GODDAMMED THING! other than sales of absorbers:rolleyes:

Empirically you're right, but I'm not thinking in that direction. I'm thinking in terms of physics...of the fact that small rooms are dominated by low end modes, there is usually just barely enough space for sufficient broad band treatment, and bass trapping to get them under control. Using up crucial back wall space with diffusion is usually not the right thing to do; you're producing a beautifully diffuse field that will be buried by the standing waves. Some of the biggest peaks and lowest valleys will come off of an untreated back wall...I see it every single day. It's by far the most common source of small room low end problems.

Furthermore, most commercially available diffusers are designed to work with more space than the the typical small room has. What's the point in using a 6" deep QRD that requires 6'-8' to produce a properly diffuse field in a 12' deep room, or on an 8' high ceiling? What you end up with are, at best, near field diffusion artifacts.

Lastly, diffusers that are placed improperly are largely ornamental...useless at best, and actually negative at worst. I can't tell you how many times I see diffusion just randomly dropped into a ceiling or thrown up on a wall with absolutely no plan at all.

Is there a subjective *element*? Sure there is, but the my position can certainly be defended objectively as well. The simple issue is this: what will a 6" deep QRD do to solve the biggest issues in a small room? Not a thing, and that's not the least bit subjective.

Frank

Last edited:
Well the control room is 9 1/2 x 12 with 9 foot ceilings.

If you're going to go with diffusion in a room that size, then I'd confine it to the right and left walls near the rear of the room. As it is your width and height dimensions are nearly identical, and that's going to mean a ton of bass trapping to control the 50Hz-150Hz stuff.

Frank

this tells me something.:D

I'm thinking in terms of physics...
hmmm, seems to me I read that same thing somewhere else...oh yea. The Master Handbook of Acoustics...oh, and somewhere else...er...lets see...where was that? Oh yea...RPG/QRD's.:rolleyes:;)

Just kidden with ya Frank. Although I have to say one thing. Maybe you haven't read any of my rants about this subject yet. They starrted FIVE YEARS ago, after posting a question here to John Sayers about QRD's. I won't go over it again as I'm more convinced than ever now that its all about "opinion" Let me give you a PERFECT example.

A few weeks ago, over at Studiotips, a guy posted a plan of his room in Sketchup, and wanted to know how to treat it. Well, I'm no expert in acoustics, but I know enough from following this subject since 1985 what small room treatment is about by now. Maybe not in mathamatical terms, but general knowlege. The guy only had (10) 2'x4' panels of absorption material available to use, but had some existing quirks in the room construction that made for difficult placement of the panels in corners. So, even though I have limited expertize in acoustics, I decided to post my .02, as I'm pretty adept at Sketchup, having been a 2d CAD detailer for 15 years. So I took his file and arranged his 10 panels with the standard corner traps, cloud, first reflection point panels, AND the last two remaing panels on....YUP...the REAR WALL.
Lo and behold, immedietly, Scott(I'm sure you know him from ReadyTraps..right? or at least I would think so:rolleyes::D) posted an affirmation of my layout....but THEN...said...of all things..."HOWEVER, he would move the panels from the REAR wall.....TO THE FRONT WALL"!!!!:eek::confused::eek:


Soooooo, what does this suggest to me? I'll tell you. IF, by virtue of PHYSICS, your assessment(which I don't disagree with) of the importance of absorption at the rear wall.... is exactly OPPOSITE of a peer who is part owner of a competitor of yours, on top of the fact that Eric told me flat out he could hardly believe the Master Hanbook was a book on acoustics, and John told me he's seen MILES of QRD's torn out because they DON"T WORK..even though this concept was designed by Phyisicist/acoustician/scientists, backed up by a published acoustician.....etc etc etc...I'm actually amused anymore.:rolleyes:
Want more? For YEARS, John has used and even advocated the use of at SAE, HANGERS. Only to read Eric say(from my understanding) he doesn;t think they work, or at least doesn't acknowlege them. Its getting to the point that I've come to view this whole thing like doctors...who will NEVER dispute what another doctor does...or attorneys who battle in court, and then go have lunch together.... PROFESSIONAL CURTESEY outweighs outright DISPUTE...except maybe Eric/Ethan/Scott's outrageously rediculous netfight type things.;) (which I've chimed in a few times in Ethans defense and actually told Eric to either drag Ethan into a court of law, or SHUT THE FUCK UP:mad::rolleyes:)

Anyway, hence my "Not saying your right or wrong," viewpoint. I've actually tried to pin down MANY people on this "diffusion vs absorption thingy", only to get 10 different opinions from 10 different people. What this tells me is this......Hire 10 different acousticians to design a control room/studio..and you are likely to get 10 different sets of solutions...ea of which may be totally different than another. Maybe not in small rooms...however, if Scotts reply as opposed to yours isn't a perfect example of this bullshit I don't know what is.:rolleyes:

this tells me something.:D

Actually, we sell diffusers too...:D

I understand your point Rick. Acoustics is not necessarily an intuitive discipline, and there are always new developments. Everybody has an opinion. Big names disagree, but the same is true in every discipline of physics, particularly more theoretically, *empirically* oriented disciplines. One of the things every researcher has to learn early on is that the act of observation influences or even alters the thing observed; so the most we can ever know is what *might* be true.

I have certain things that I do as a default mode, as it were. These things tend to be the best things to do 80% of the time, but like each mix, every room is different and has to be considered on its own merits.

Frank

One of the things every researcher has to learn early on is that the act of observation influences or even alters the thing observed; so the most we can ever know is what *might* be true.
Like this subject.:D That WAS my point.

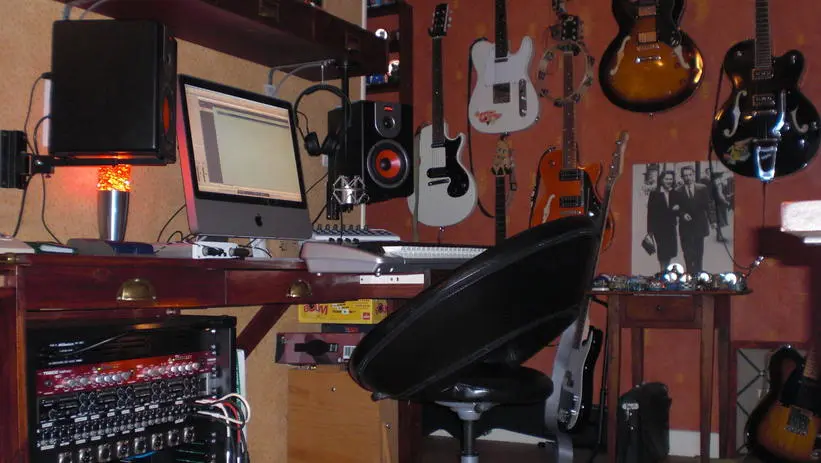

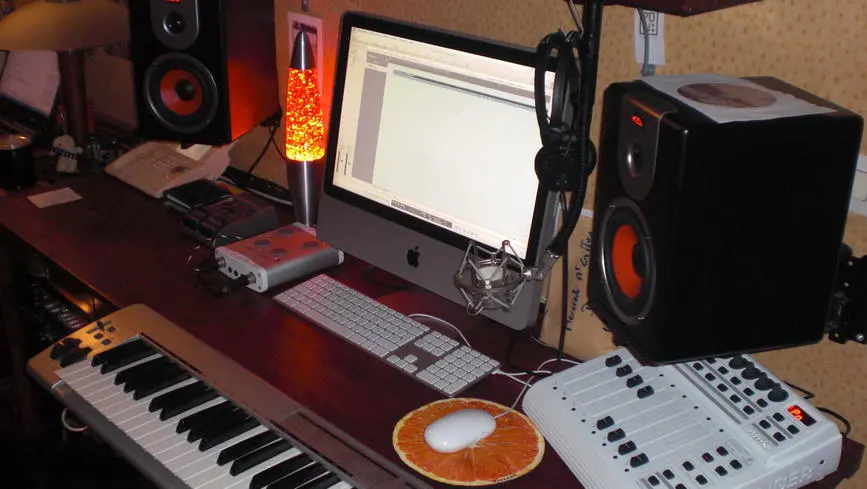

Ok... here is my little one !


Attachments

  • CIMG0324.webp
    39 KB · Views: 1,070
  • CIMG0325.webp
    36.8 KB · Views: 1,070
So Close I can taste it....

Hey all here's my nearly completed small studio....all i lack is some trim and desk.....













did you make that diffuser panel with all of the woodblocks?

did you make that diffuser panel with all of the woodblocks? how'd you do it?

did you make that diffuser panel with all of the woodblocks? how'd you do it?

yeah I started by making a 2' by 3' INSIDE DEMINSION frame from 1 x 4 pine(.75"x3.5") then cut some 4' pieces of 2x2's(1.5" x 1.5") into random sized pieces, ranging from 1'' to 4'' pieces. i then cut some 1/8" plywood to 2' X 3' for a backing to crew the wood blocks to. I took some scrap pieces of 3/4" and made a "ledge" around the frame for the plywood to rest on and add some support and started laying blocks in the frame....

A problem I ran into that explains the gapped places is the blockes were not exactly 1.5" by 1.5" they may have been a 16th bigger so over a distance the 16th's added up and didn't fit exactly so i just split the difference of the gap and made it symmetrical.

other info...I pilot holed every block, if i didn't they would split. So there ya go...

your diffuser

Great job on the diffuser, been thinking about building one...I have a question, does it really help? Sometimes I think diffusers are like the old Pet Rocks from years ago or bottled water....I mean I see them for sale at outrageous prices and am curious to know if they really make a difference. I have a small room studio and have read and heard that they can really make a difference, but asking someone who built one and what he thought would make up my mind...

you did a great job and it looks better than the pro models I have seen... They sure look cool in a studio and I might build one just for the art and ambience factor alone...

If I were to post some picks of my studio people might laugh. Mine is nothing compared to some of the picks I have seen. I can make some cool sounds on the equipment I do have.
