The new baby's arrived

arjoll

arjoll

New member

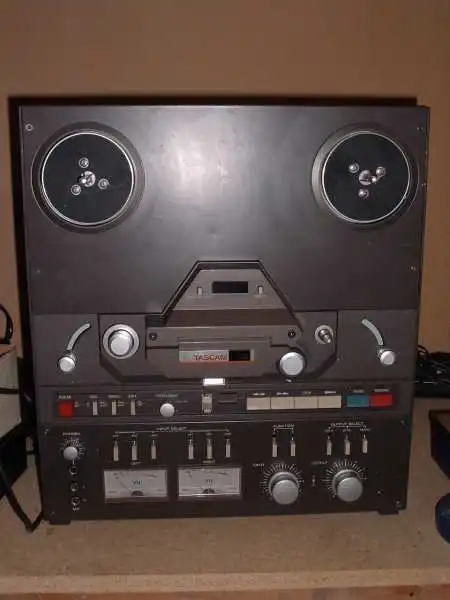

Arrived this morning....

I know its not much compared to you guys who have your TSR-8s, MSR-16s and other fancy gear, but at least its mine and I can finally play back those recordings I made 10 years ago 1/2 track at 15ips!


Attachments

  • Dscf0875.jpg
    20.8 KB · Views: 160

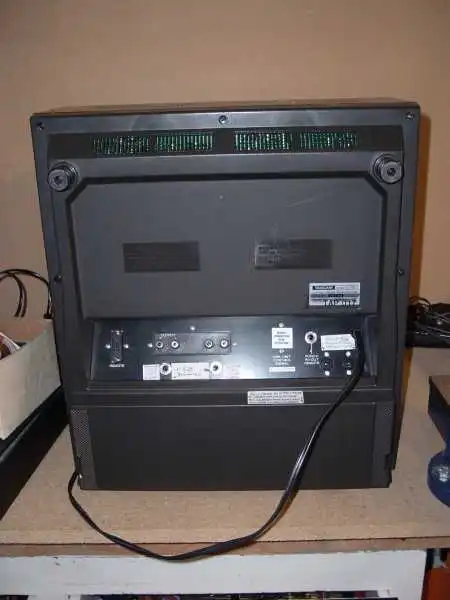

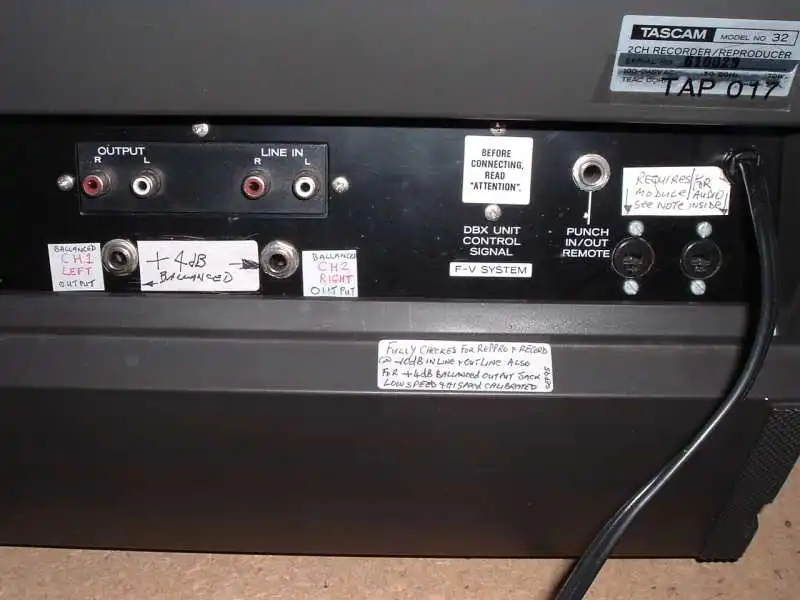

It came from a broadcaster and has been modified for a +4 balanced output. I haven't looked at what the other mods are yet, but I suspect that fader start will be one of them. They've supplied the service manual and details of the mods.


Attachments

  • Dscf0874.jpg
    36.7 KB · Views: 142

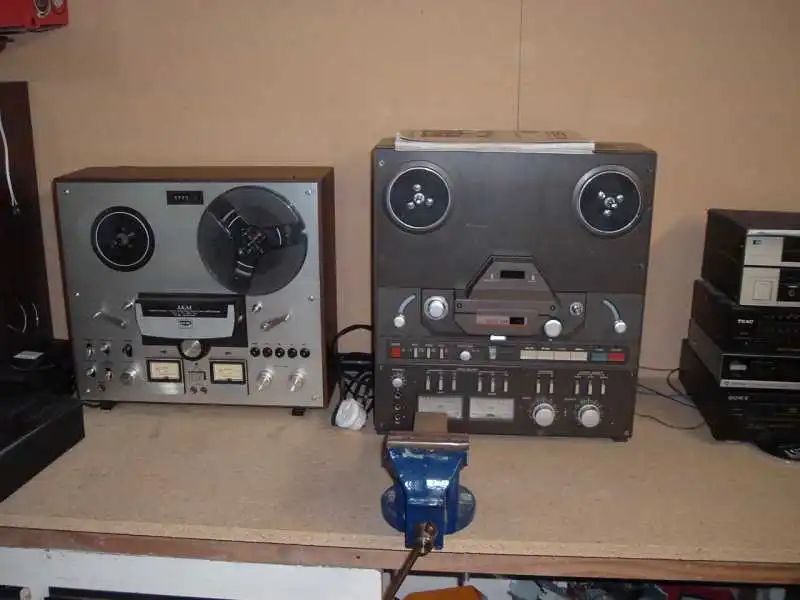

Here it is sitting beside its new flatmate in the workshop :)

I'm hoping that while I'm away in Rarotonga later this month they'll breed :D


Attachments

  • Dscf0876.jpg
    34.6 KB · Views: 150

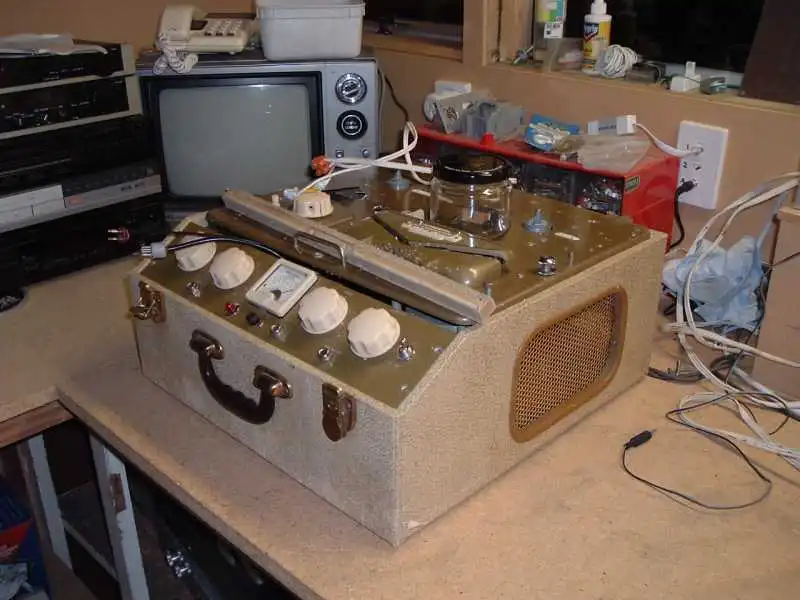

And finally, here's a dead Ferrograph. Had to throw that in there :)


Attachments

  • Dscf0877.jpg
    46.1 KB · Views: 145
monty said:
That looks like a clean work bench. You don't really exist, do you..!? :mad:
Click to expand...
It's an L shape. The photo of the Ferrograph doesn't show the other 2m or show to the right.... I did put a heap of tools away to make space for the 32 though...

Last edited:
Andrew, first of all congrats on 32 :D :cool: :D

second thing. Ferrograph. what do you mean by 'dead'? do you mean to say that you sort of gave up on it? :(
if so.... Just don't trash it. Do your best on cosmetics - it will do great as 'display gear' :) Or you can convert it into something for fun.... something simple.... like install a simple am/fm radio into it, use internal speakers, make VU metter work with radio audio signal, make those super-knobs to control tuning, volume or what have you... make sure all possible existings lights do come on as you turn it on ... or add some for effect :D

/respects

Dr ZEE said:
second thing. Ferrograph. what do you mean by 'dead'? do you mean to say that you sort of gave up on it? :(
Click to expand...
This is one I bought on a local auction site (trademe.co.nz) for parts - but it arrived in cosmetically better condition than the one I was working on, so thought I'd go as far as the other as I can (it has a dead hold-in solenoid) and then see what the deal is with this one. So far I appear to have HT in some parts of the circuit and not others, no playback amp but record metering, etc.

Working on these things is kind of outside my comfort zone. The 300 volts DC running those valves is, well, not the kind of thing I like being around too much. :eek:

My intention at the moment is to check the solenoid, and do a transplant if its ok.

BTW sorry about the late reply, arrived back from 12 days in Rarotonga, Cook Islands today!

Ferrograph

I checked the solenoid over the weekend - it looks like it might be ok, so I should be able to make one good Ferrograph from this one (with unknown fault) and this one which works find except for the dead solenoid.

Muckelroy said:
All it takes is 40 mV to stop your heart.
Click to expand...

....and a whole world more current than a signal tube ever deals with.

Dr. Muckelroy, 20,000V will merely tickle you if the current is miniscule enough. You need the other half of the equation to fulfill your electrical engineering aspirations.
