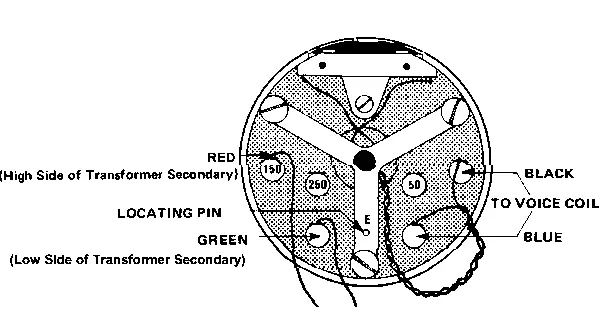

Wiring diagram for RE-20

[Harvey Gerst]

This should help you get it working again. Sorry, but I can't send pics via PMs.



[FZfile]

Thanks so much Harvey.

You definitely da man.

In case anybody ever needs to take the RE20 apart........be careful not to pull the wires completely off from the body........not that I would know anything about doing something so dumb.

-mike



[FZfile]

solid copper wire vs. multi-strand wire??

Will it matter if I replace the multi strand wires that connect the XLR plug to the microphone with thin-guaged solid copper wire??

The wires that are on there now (the ones I need to reconnect) are kind of ratty on the ends and I need to shorten them up even more to clean up the ends.
There is very little excess wire as it is.

I figures it might just be easier to replace them.
I have a bunch of thin (telephone) guage solid copper wire.
I rigged up my guitar with it and it works fine but didn't know if there are any issues with a mic and the kind/guage of internal wiring.

-mike

(ps I know I e-mailed you, Harvey. I am not trying to be a pain but figured it may or may not be good general knowledge to put up on the board here.)



[dialing_wand]

I realise this is digging up a very old thread. But I DID pull the wires off of the XLR connector when it came out. I was wondering which goes where. I have the wiring diagram that was attached, but I didn't want to solder the wires back onto the XLR male connector reversed.

Any ideas?
