Tascam 22-2 REEL TABLE

[Zagor]

Hi to the Community


Some time ago, I already ask for Service manual of a Tascam 22-2 R2R recorder. Whit the help of the community I’ve already solved few problems (Power supply, it wasn’t showing any signs of life, but I managed to fix that), before I continue with the restoration I need the reel tables (same one is on the TEAC X-300R X-3R, X-300R, TASCAM 22-4, REALISTIC TR-3000 models). Since I’m familiar with modeling and 3D printing, and I have access to a 3D printer, I’m wondering if there is anywhere a 3D model available, or at least the exact dimensions and all side pictures of the reel tables so I could print them and continue with the restoration 'cause it seems pointless to me to invest both time and money into recapping for example if I can’t manage to find table reels beforehand.".


Kind regards,
Z.



[sweetbeats]

What happened to the original reel tables?



[Zagor]

What happened to the original reel tables?

"I have no idea; when I got the device, I received it without them, and with a US plug. Before it got to me, it had been sitting for over 10 years as a piece of decor in a jazz club."



[sweetbeats]

So not the reel adapters, but the adapters and the reel tables too? All you see is motor shafts? That’s bananas. Have you tried Tascam Ninja? I HIGHLY doubt anybody has a 3D model since it it is not at all a common part to break or be missing.



[BeatleFred]

Reel Table for TEAC X-3, X-3R X-300, X-300R Tascam 22-2, 22-4 Replacement | eBay

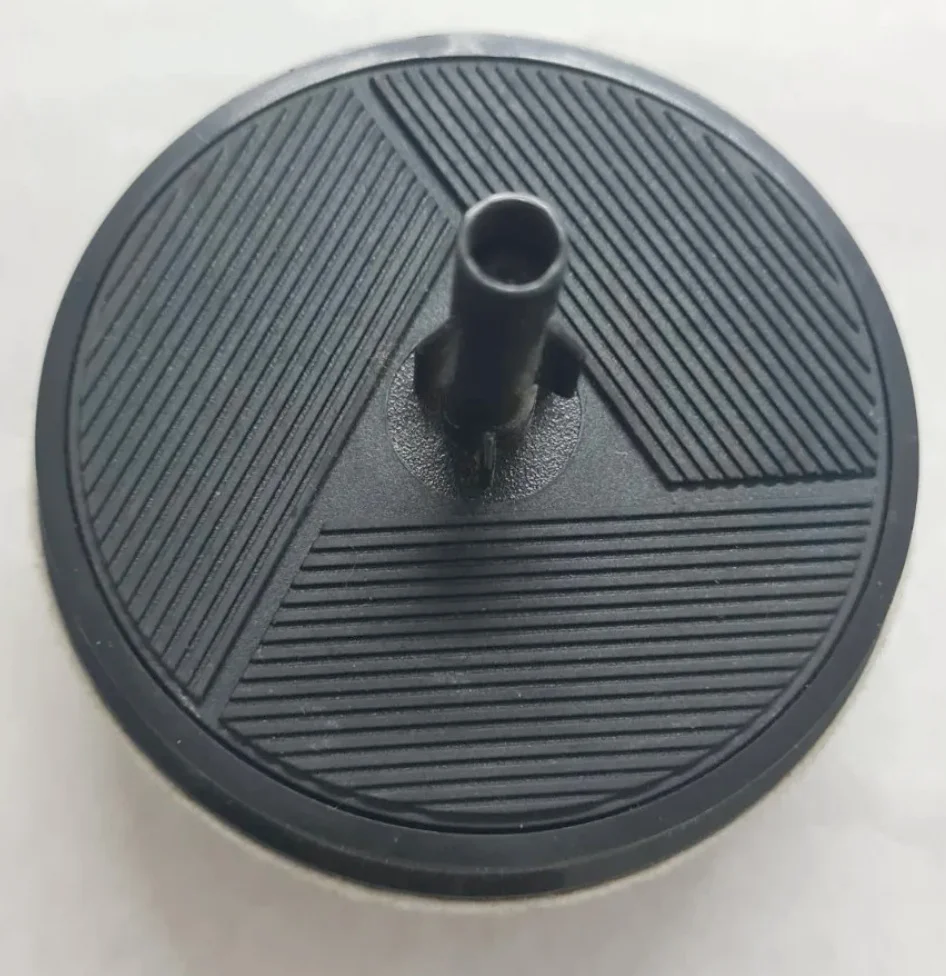

Reel Table for TEAC X-3, X-3R X-300, X-300R Tascam 22-2, 22-4 Replacement. Solid good condition. Please take a close look at photos to see condition.
