Can somebody point me to this graph? I saw it a year or so ago, but can't find it now. Thanks.Richard Monroe said:Well, DJL, if I were to draw Dot's graph, with 2 perpendicular axes- Bright vs. dark, and colored vs transparent, I would put the B-1 somewhere on the bright transparent side, the V67 on the dark colored side, the MK319 on the dark transparent side.
Well, I found it myself.crazydoc said:Can somebody point me to this graph? I saw it a year or so ago, but can't find it now. Thanks.
crazydoc said:Well, I found it myself.
It's in this thread, which bears re-reading:
https://homerecording.com/bbs/showthread.php?t=108464
According to the graph, the C1 is very bright and colored, whereas the B1 is bright but not colored (which I would read as bright but neutral.) I must say I don't understand the difference between "transparent" and "neutral."
It's also found at:
http://www.thelisteningsessions.com/images/mic-graph1.jpg

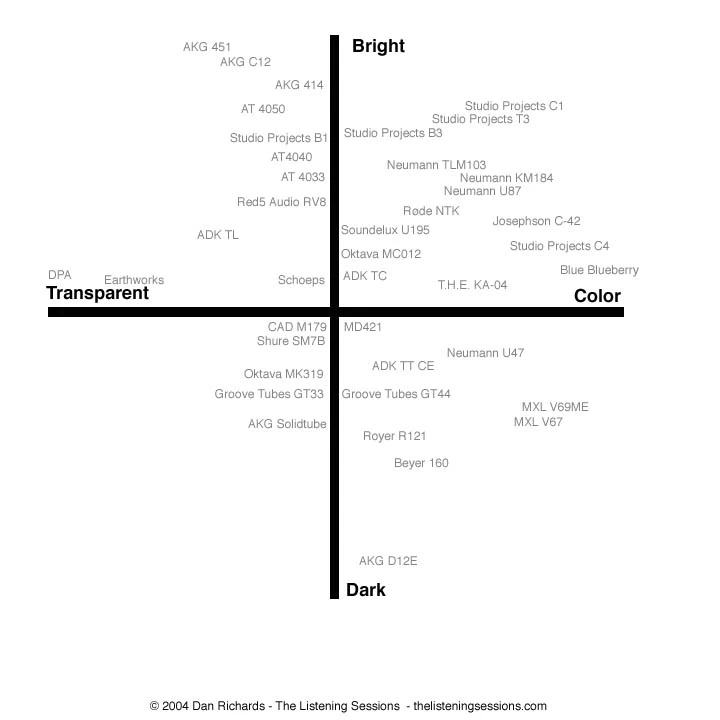

I've taken the liberty of reposting the graph here for any further discussion. Thanks for this, Dan. Any further updates?
crazydoc said:So I would think there should be no negative values to the X axis, and there should be only two quadrants to the graph.
My problem with that is "what is a normal amount of coloration?" That is really just a subjective determination, and I don't think it really deserves an axis.OneRoomStudios said:Unless you think of the origin as having a "normal" about of coloration. That way it's easier understand the fact that some mics (DPA, Earthworks...etc) are extremely transparent, while others, (M-179, SM7, etc) are just "non-intrusively" colored (neutral).
crazydoc said:My problem with that is "what is a normal amount of coloration?" That is really just a subjective determination, and I don't think it really deserves an axis.
OneRoomStudios said:Hey Dot - while we're on the topic, I just wanted to thank you for making that graph in the first place. I have been looking at it for a while now, and it has helped me a lot in understanding the way different mics sound in comparision to each other. In some ways, that graph is somewhat of the "ruler" that DJL was talking about. Is there any chance of an update? It would be immensly helpful to have things like an SM57, MXL 603, some Audix mics, and any other newer mics that aren't included on there. I know it's probably time consuming and I imagine you're pretty busy, but if you ever had some free time, I (and probably many others) would greatly appreciate an update.
-Peter
krs said:According to the chart Earthworks is more transparent than Schoeps? Never used the Schoeps, but I assumed they'd be right there with B&K in terms of transparency..
crazydoc said:Well, I can see where neutral would be at the 0 point on the Y axis (between bright and dark), but on the X axis (transparent versus colored), to me the more transparent the sound means the less it is distorted (or colored), or the more it sounds like the source signal. Neutral also means the same thing to me - that the signal has been unaffected by the processing.
So I would think there should be no negative values to the X axis, and there should be only two quadrants to the graph.
bright
l
l
l
l
l____________ more colored
l
l
l
l
l
dark
Sorry, I can't agree with you at all. It certainly has something to do with the way a mic sounds, particularly if the low frequency cutoff is significantly above 20 Hz, the standard threshold of low frequency perception, or significantly below 20 kHz, the upper threshold. I don't think switching in the high pass filter significantly alters the "brightness" or "darkness" of a mic. It cuts out a boomy bass.acorec said:Look at a mic test chart (the one that comes with your mic). If you take the highest frequency/lowest frequency and look at the cut off/ cut in points, that is the "dark" vs. "bright" axis. A dark mic rolls off (reduces amplitude) at a lower frequ than a bright mic. This is due to the analog filtering that is applied to the pre-amp circuitry of the mic and to some degree the actual mic element.
I think it is the relationship of frequencies in those areas that determine "dark" or "bright", not the "color."The test chart will also have points in the curve that is a boost in the lows, mids, highs or any combination of these. That is the "color" or how much the mic adds EQ to the sound...
So if coloration enters or "becomes an issue" only at the intersection of the Y axis, and the M179 is way across the graph on the color axis at "neutral", and at about the same value on the dark/bright axis, what is the difference in the two mics?OneRoomStudios said:I definitely see what you're saying, but I think it is helpful to have some sort of marker or something at the point where the coloration becomes an issue. If I'm using an M-179 vs an Earthworks, then yeah, I'd probably hear it as slightly colored, but in the grand scheme of things, the M-179 is a pretty transparent mic. In otherwords, something like an M-179 doesn't neccesarily impart its own "character" on the source. Compared to a v69, which has a lot of coloration or character, the M-179 is neutral. So by setting up the graph the way Dot has it now, it is possible to see that point where the coloration enters into the equation.
Right - that's my point. That's why the origin should be there. Again, what is the difference between transparent and neutral? It seems that, according to the graph, transparent + color = neutral. I disagree.On the other hand though, my one problem with representing it this way is that you can only get so transparent.
