An MM-1000 four-track??
An MM-1000 four-track??
sweetbeats
Reel deep thoughts...
Yah...some spares I picked up for cheap...I really only got it for the scrape flutter idlers but there is a second incomplete headblock assembly that is coming with the bunch that ALSO has the scrape flutter idlers intact. So this makes it possible for me to have 4 complete 1" headblock assemblies, three 8-track, and one 4-track. I'll need to have a 1" 4-track repro head made which won't be cheap...total back-burner for sure, but could be fun. I think it would make the world's most ridiculously massive 4-track analog recorder/reproducer.
The three 1" 8-track headblock assemblies all have different head types so may offer some different flavors. I'll know more whether or not that's of any value someday. And if not look to thin the herd down by one assembly if there is one that just doesn't fit in.
The three 1" 8-track headblock assemblies all have different head types so may offer some different flavors. I'll know more whether or not that's of any value someday. And if not look to thin the herd down by one assembly if there is one that just doesn't fit in.
sweetbeats
Reel deep thoughts...
So I finally unwrapped the spare headblocks today...good news is all four of the scrape flutter idlers are in nice shape.
The 1" 8-track play head is in pretty bad shape I think, but that's alright...I don't need it anyway. The 1" 4-track erase and record heads actually look to be in good shape. On the record head the gap depth is unknown but at least the gap is centered in the wear pattern, and the wear pattern looks really nice (no keystone or hourglass patterns)...just looking at it I think there may very well be quite a bit of gap depth left. So, cool. Maybe someday I could have a Flux 1" 4-track play head made up and have a crazy 1" 4-track machine...
EXCEPT...!!
Here's the trick. I'm confused! I never saw the head wires or connectors before purchase and when I unwrap the assembly today there are only two pairs of wires for each head...and only two sets of terminals on the back of each head as opposed to the 4 that are necessary for 4-track operation! These are only 2-track heads with 4 cores each...bizarre!!
PLUS...it looks like the erase head is missing a guard band section between tracks 1 and 2. I'm baffled!
Anybody have an explanation why this might be? Like why would somebody make 1" heads to record only 1/2" 2-track on 1" tape?

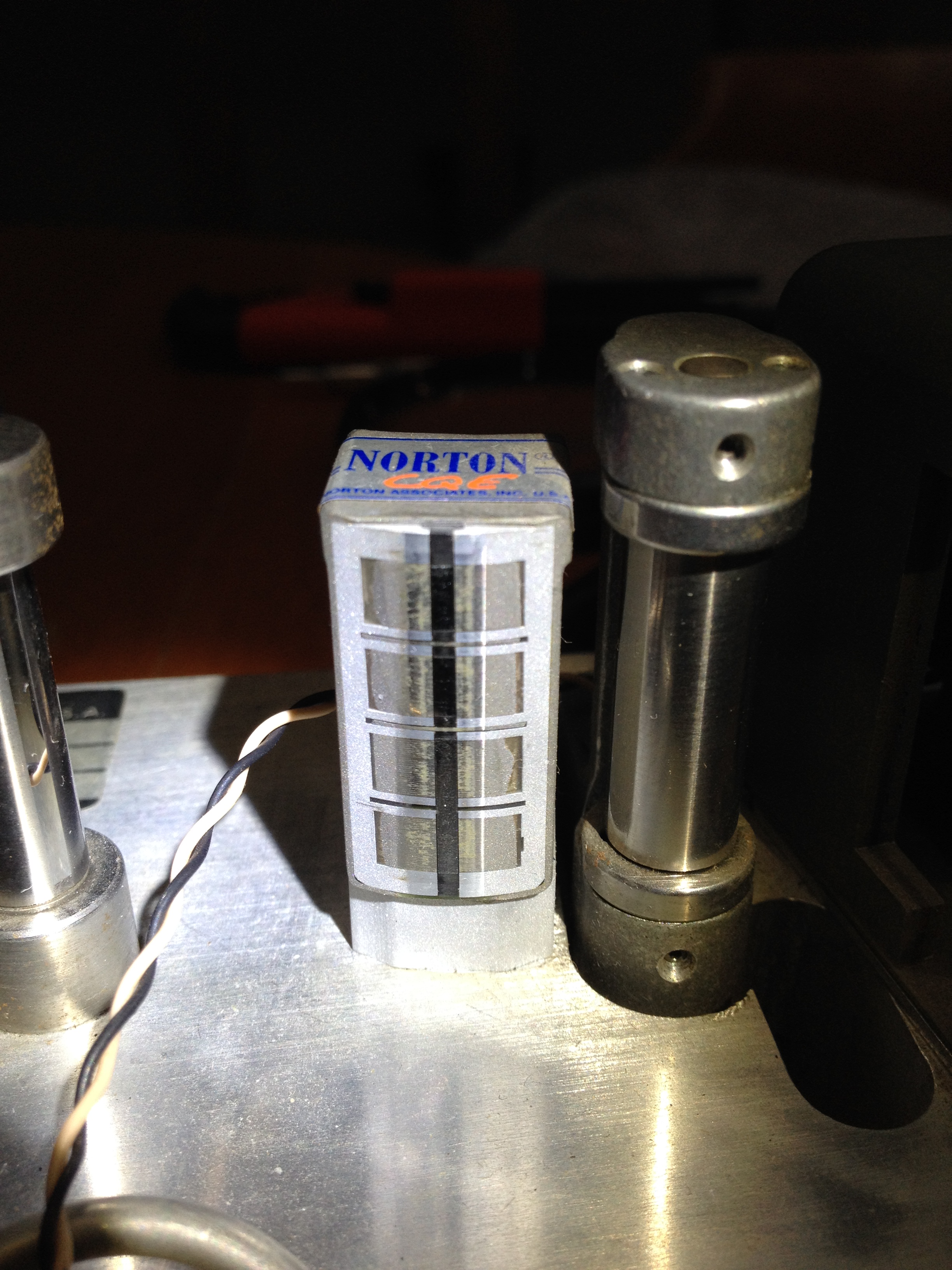

Erase head front (note the missing guard band core between tracks 1 and 2):

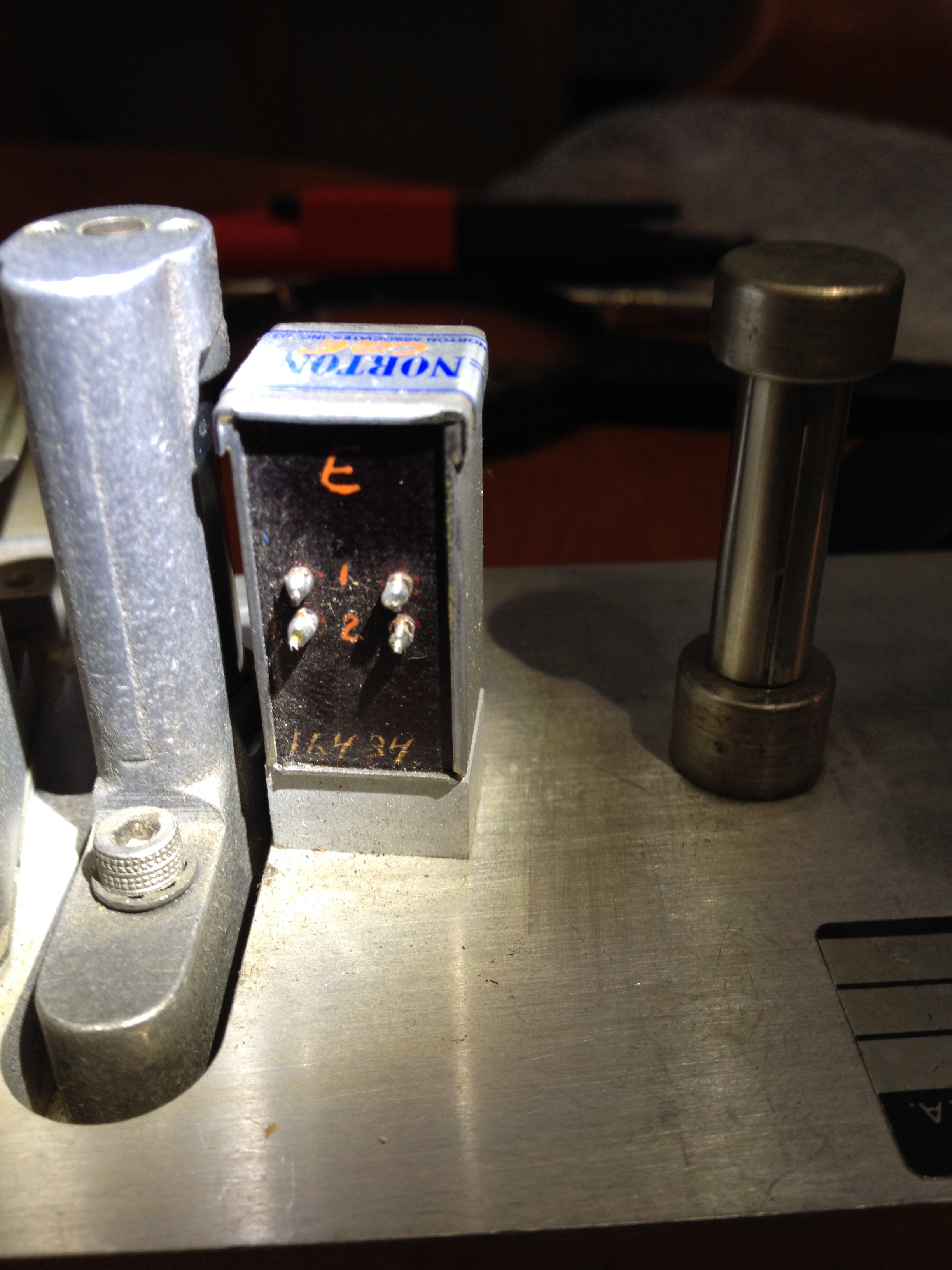

Erase head back:

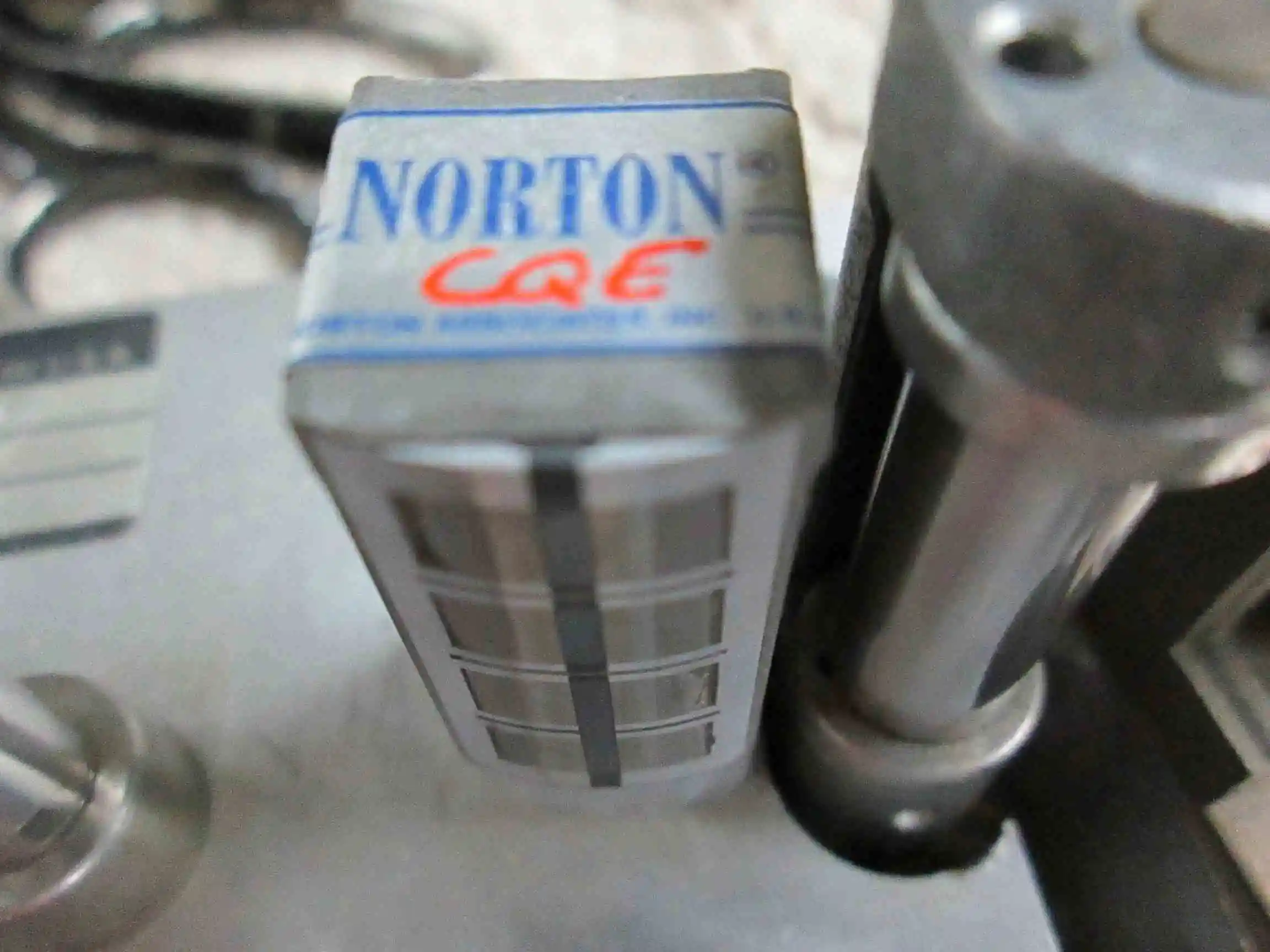

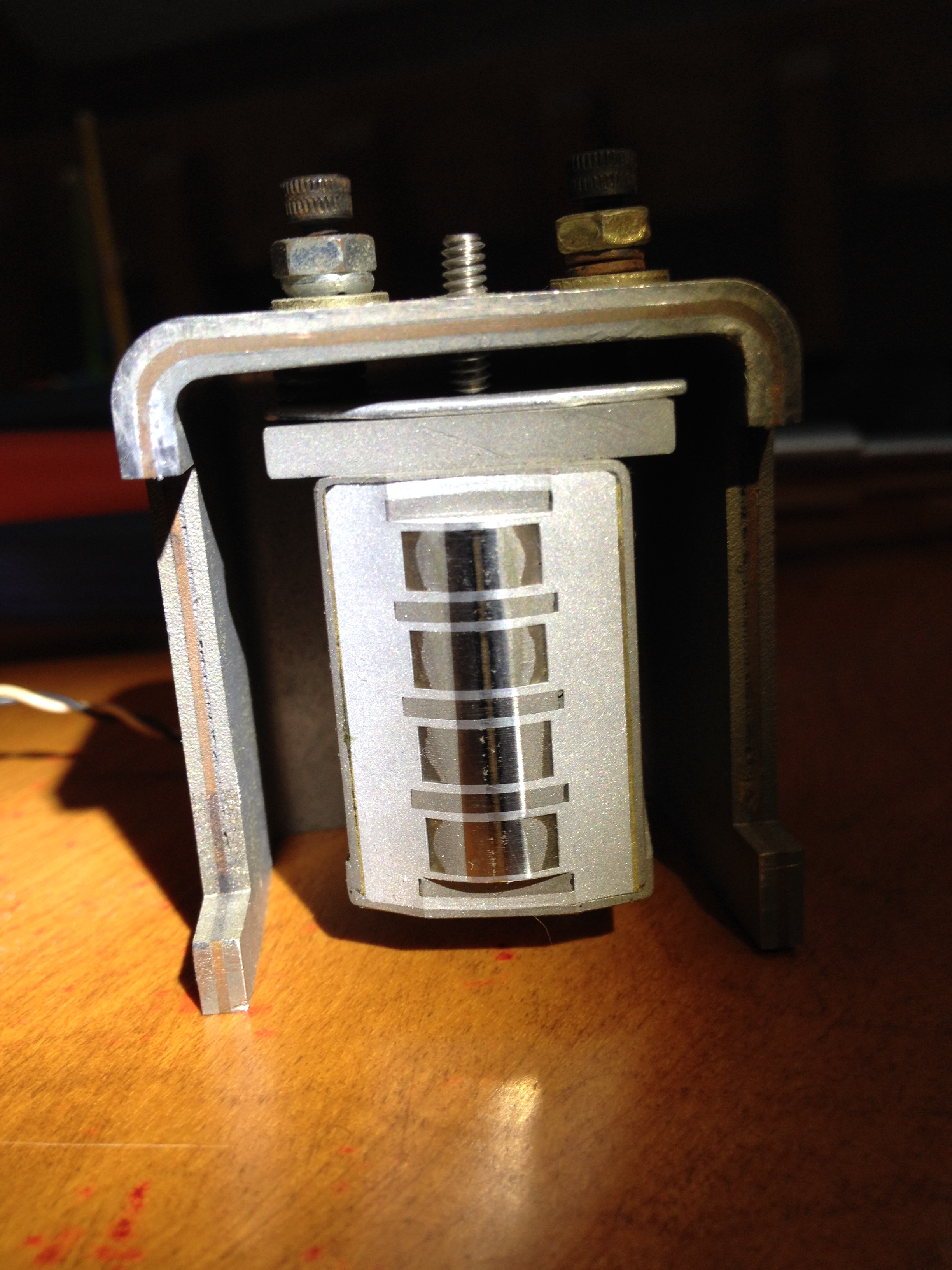

Record head front:

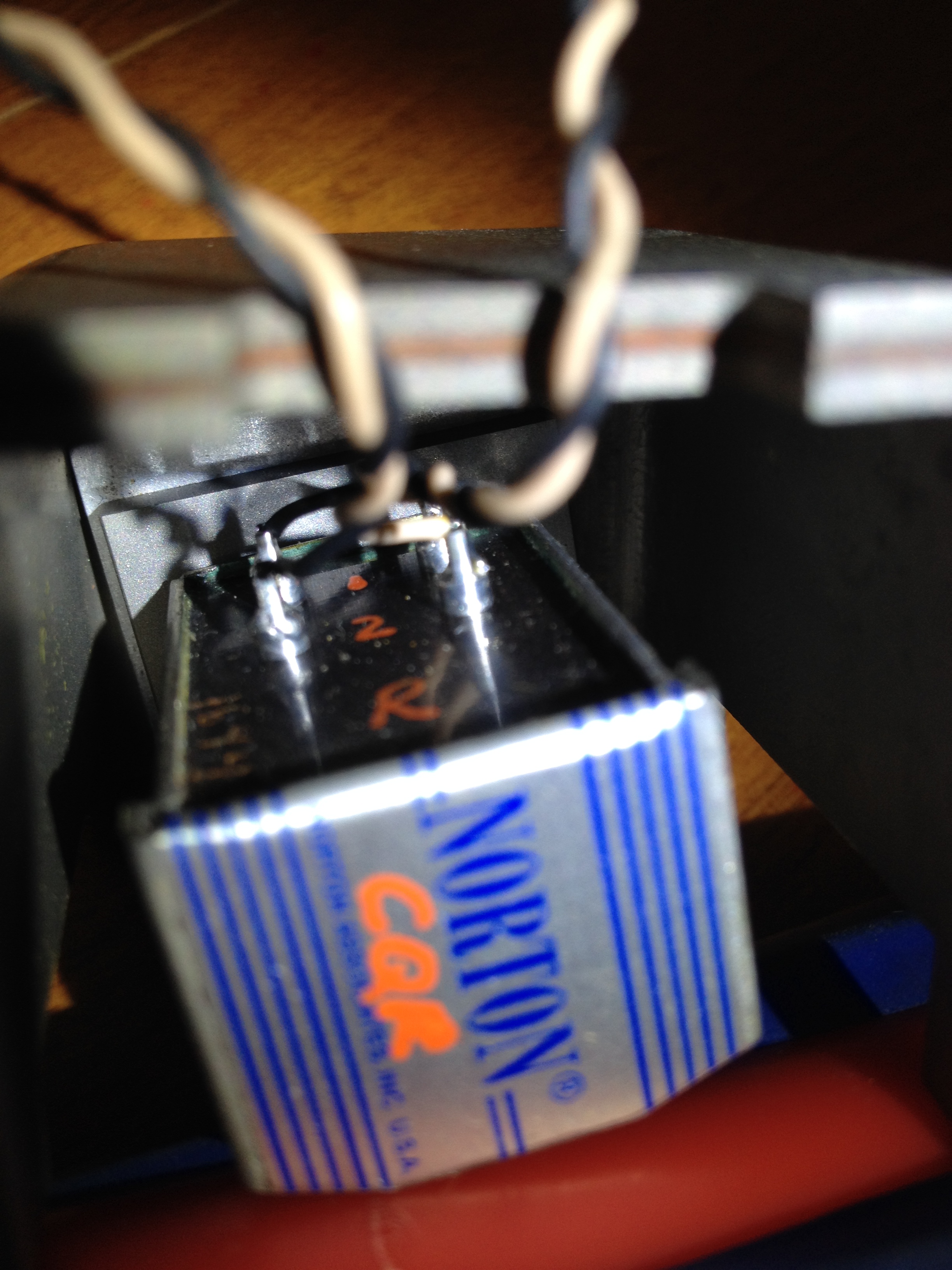

Record head back:

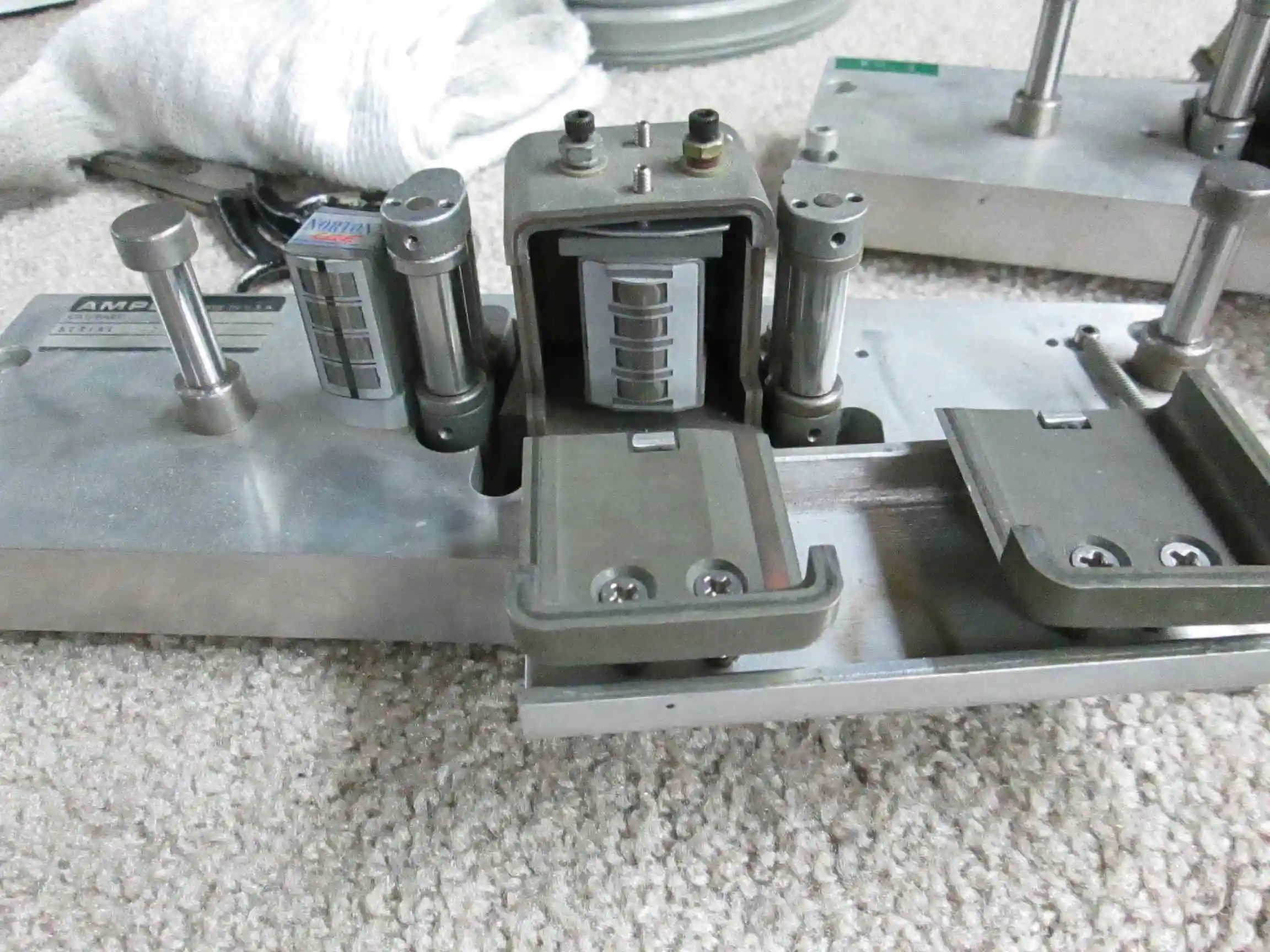

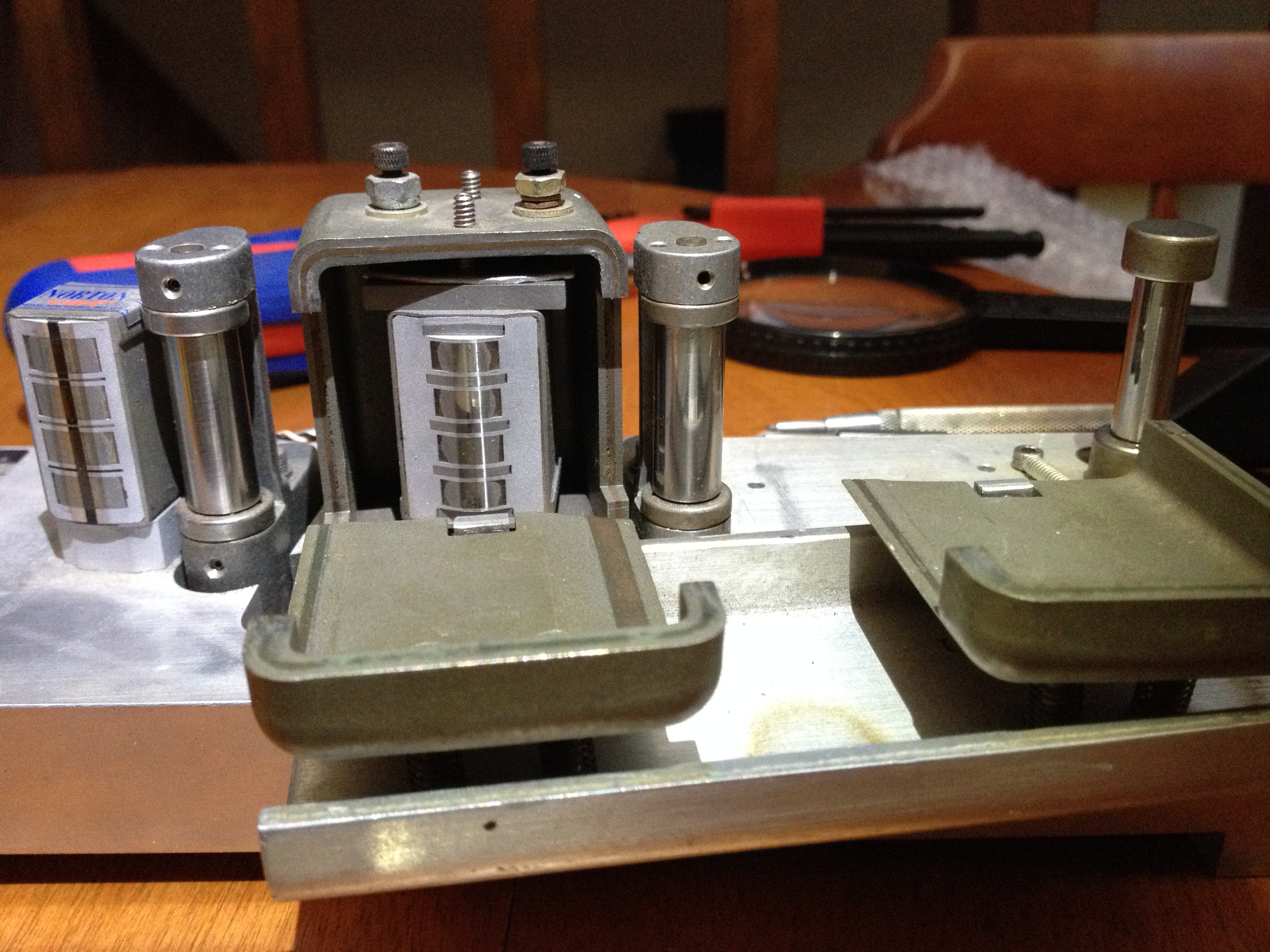

Assembly overview:
I've never even heard of Norton heads.
Thinking I might reach out to John French on this one...I posted on the recordist.com Ampex List as well...thinking I might get some good information there.
The 1" 8-track play head is in pretty bad shape I think, but that's alright...I don't need it anyway. The 1" 4-track erase and record heads actually look to be in good shape. On the record head the gap depth is unknown but at least the gap is centered in the wear pattern, and the wear pattern looks really nice (no keystone or hourglass patterns)...just looking at it I think there may very well be quite a bit of gap depth left. So, cool. Maybe someday I could have a Flux 1" 4-track play head made up and have a crazy 1" 4-track machine...
EXCEPT...!!
Here's the trick. I'm confused! I never saw the head wires or connectors before purchase and when I unwrap the assembly today there are only two pairs of wires for each head...and only two sets of terminals on the back of each head as opposed to the 4 that are necessary for 4-track operation! These are only 2-track heads with 4 cores each...bizarre!!
PLUS...it looks like the erase head is missing a guard band section between tracks 1 and 2. I'm baffled!
Anybody have an explanation why this might be? Like why would somebody make 1" heads to record only 1/2" 2-track on 1" tape?
Erase head front (note the missing guard band core between tracks 1 and 2):
Erase head back:
Record head front:
Record head back:
Assembly overview:
I've never even heard of Norton heads.
Thinking I might reach out to John French on this one...I posted on the recordist.com Ampex List as well...thinking I might get some good information there.
Last edited:
They look like custom heads all right. Maybe made for a specialist purpose like replaying 4 track film? Don't forget the film world used magnetic film in multitrack formats too. Or someone trying a wider track format. Fire em up and see what they sound like!
If you don't want them let me know. I have access to an old MM1200 carcass which I have always thought it would be cool to do something with.
If you don't want them let me know. I have access to an old MM1200 carcass which I have always thought it would be cool to do something with.
sweetbeats
Reel deep thoughts...
I got the answers on the heads. They are definitely 2-track and made for the purpose of recording on one half of the 1" tape, flip and record on the other half...I guess they did this for cassette tape duping...MM-1000 is an odd machine for this application, but that's what they are.
So I guess I have 2/3 of an awesome 1/2" halftrack setup with extra long play...
So I guess I have 2/3 of an awesome 1/2" halftrack setup with extra long play...
lonewhitefly
Active member
I got the answers on the heads. They are definitely 2-track and made for the purpose of recording on one half of the 1" tape, flip and record on the other half...I guess they did this for cassette tape duping...MM-1000 is an odd machine for this application, but that's what they are.
So I guess I have 2/3 of an awesome 1/2" halftrack setup with extra long play...
Presumably, the play head would have been a standard 1" 4-track to dub the whole thing in one go I'd think ... possibly why there is no play head -- it may have been played back on another play-only (duplication) machine.
Hammerstone
Out of style
Cassette, or 1/4" open reel maybe? Man, that might actually come in handy someday if you want to make high-quality copies of master tapes. You could start your own budget Tape Project for anyone who wants the ultimate copy of one of your albums! And certainly cheaper than doing a run of vinyl, eh?
sweetbeats
Reel deep thoughts...
Except that there are only two active cores...two of the cores are dummy cores. Tracks 1 and 2 are the only active tracks on these heads.
sweetbeats
Reel deep thoughts...
No these aren't cassette or 1/4" open reel...these are 1" heads.
lonewhitefly
Active member
Right ... so it records on tracks 1 & 2, then you reverse it (flip the tape around) and record it on tracks 1 & 2 upside down on the same reel. When you play it back on a standard 1" 4-track head, one program goes forward and one in reverse (simultaneously on all 4 tracks) ... just like a cassette. So it could be used for duplication. Makes sense how they would need the heads produced in this manner for this specific purpose.
lonewhitefly
Active member
It would have to be for cassette duplication being track 1 & 2 ... open reel duplication masters would be tracks 1 & 3.
The problem w/ Sweetbeats' setup is there's no play head! I'm guessing the play head was on a different playback-only machine.
lonewhitefly
Active member
I believe he means the duplication masters for 1/4" or cassette.
I know 8-track cartridge duplication masters were usually on 1" 8-track. What's curious here is that it's 1" 4-track ... I assume cassette and 1/4" 4-track or quad open reel duplication masters would have generally been on 1/2" 4-track. The guys that ordered your heads originally probably had an 8-track cartridge and cassette duplication setup or something, so they used the same MM-1000 machine for both ... just switched out the heads.
sweetbeats
Reel deep thoughts...
Yeah, but its NOT a 1" 4-track setup. Its basically a 1" unidirectional quarter-track setup (i.e. half of a quarter-track setup for 1" tape).
The Ghost of FM
Banned
Probably redundant info but cassette tape is 3/16th of an inch. Not 1/4 inch.
Fancy looking heads there, Cory!
Cheers!
Fancy looking heads there, Cory!
Cheers!
sweetbeats
Reel deep thoughts...
Here's a wrinkle though, the terminals on the backs of the heads are labeled "1" and "2", but that doesn't mean those connect to cores 1 and 2 as you count from top to bottom...since they are 2-track heads its possible that "1" is the first core at the top, and "2" *could* be the third core...that would explain why there are guard bands between the 1st, 2nd and 3rd cores of the erase head, but not between the 3rd and 4th cores. I would expect if the 1st and 2nd cores were the ones utilized there would only be a guard band between cores 1 and 2.
Also, I think it is reasonable to assume there used to be a play head mounted...there is a head can cover there for the play head on the gate, and burnishing of the machine marks of the mounting block where a head can was mounted. Plus the second scrape flutter idler is in place which really would be superfluous if there never was a play head mounted.
I think it should assumed there was a play head at some point.
Wish I knew of a way to test which terminals on the heads went to which cores...
