Sketchup Studio Design Help

[ThaArtist]

Thanks for any help or suggestions!



[jlewis]

maybe some corner traps in the control room, eq wiz it and find out. what are the dimensions? Looks awful small, might be better to take the 1 room approach.



[ThaArtist]

It is aweful small. I was looking at John Sayers design for Small studio and his is about 10'x18'. Well the room I have to work with is about 6'x18'. Possibly 7'x18' with some creative doing around an existing corner.

I pretty much realized that I need superchunk bass traps for the mixing room and some slotted panels it seems. I might redo this design with John Sayers Small Studio design he released for free, in mind.

I want two separate spaces because of convenience. People take forever with their guitar takes and it's hard to be quite all that time, etc.



[tzaxo]

If you want me to make it look real, add me on msn, Broth3rz@hotmail.com. Or post your aim or yahoo details. Pm doesn't work.

It's just a hallway with a door leading to a room that's like a rest up room, just to eat, drink, etc. Ignore the lights and how thick that door is on the one side. I'm doing this for my Studio and of course the lighting and textures, everything will be perfect.

https://img24.imageshack.us/img24/7093/56935628.png
https://img153.imageshack.us/img153/3213/s0011.jpg
https://img146.imageshack.us/img146/3781/s0010.jpg
http://img535.imageshack.us/img535/9895/s0009l.jpg
https://img15.imageshack.us/img15/3170/s0008l.jpg
https://img97.imageshack.us/img97/7548/s0006.jpg
https://img96.imageshack.us/img96/206/s0005.jpg
https://img718.imageshack.us/img718/8646/s0004.jpg
https://img718.imageshack.us/img718/2449/s0003.jpg
https://img24.imageshack.us/img24/9449/s0002f.jpg
https://img683.imageshack.us/img683/7986/s0001h.jpg
https://img42.imageshack.us/img42/1581/s0000.jpg



[ThaArtist]

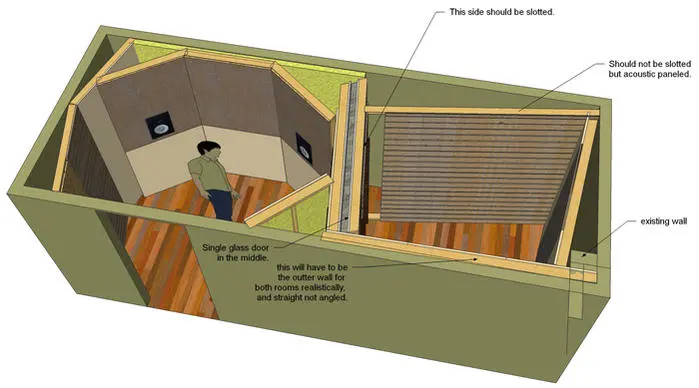

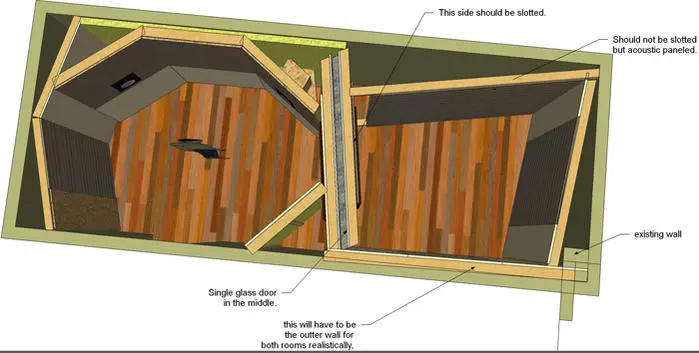

What do you guys think of something like this. The ceiling is only 6'5" high and the total space is about 7'x17'. I modified John Sayers small studio design. Think this would work acoustically?



[Weasel9992]

Okay, hold on a sec...you're kinda going the wrong direction with it. The space is so narrow that it really doesn't make any sense at all to divide it into two spaces that will each be EVEN SMALLER. Furthermore, it makes even less sense to then take each of those tiny rooms and reduce the overall volume EVEN FURTHER by introducing angled surfaces. You're going to spend a ton of money doing it and end up with pretty poor results.

I'd keep the space undivided, then trap the heck out of it. Do all the usual things: bass traps in all the corners and on the back wall (I'd do superchunks in the corners and at least 6" traps on the back wall), then do 4" panels absolutely everywhere else...reflection points, front wall, ceiling and the right and left walls near the back of the room. No diffusion. The space is too small.

Seriously...you don't want to divide that space...

Frank



[ThaArtist]

Ok! See... thats all I needed! lol

So glad to hear that because anything else is alot of work!

Wondering what you think of the studio in semi crate type thing? That cant be much wider then 10' and the ones I seen maybe 25' long?

Maybe I should scratch the whole idea and just build some gobo type system like someone recommended?



[ThaArtist]

John Sayer also said Im way to narrow to mimick that studio. He recommended I look at: http://www.johnlsayers.com/Pages/Flying_Fox.htm

What do you think about that idea?



[Weasel9992]

While I'd certainly bow to John's superior experience, I still have doubts that splitting that space up is a good idea.

Frank



[lifewasted]

Can you tell me how did you draw this ? thanks



[Dogbreath]

I agree...splitting it up just doesn't make much sense to me. I'd keep the length and trap the shit outta it.



[Dogbreath]

Can you tell me how did you draw this ? thanks

I think he used this...
http://sketchup.google.com/



[ThaArtist]

I did use Google Sketchup. Trust me, save yourself some time and just go through all their tutorials.

Yeah, this might turn into a real buying a cargo crate and building another one like on John's page. Instead of investing building something in a house I dont own. (Dad said I could build something at his house since I rent and dont have space.)

Cargo crates can be moved non commercially right? lol There has to be a way to move it through the streets. Might have to pay a semi type truck driver with a fork lift type setup? I dunno.

The second design I posted as attachments. I used Johns existing design which HE did in google sketchup and just modified it for my space.



[ThaArtist]

I actually think we are going to scratch this and invest in a cargo container studio.
