PreSonus TubePRE 1-Channel Tube Preamp
Never used. Asking $60 plus shipping.
View video test of the product I'm selling: at 4040 - YouTube
It’s true that dynamite comes in small packages. If you don’t understand where we’re going with this analogy, you obviously have not checked out our TubePRE tube preamplifier. You can really have a blast with this hot little device.
You might not expect to get a professional-quality preamp with the trimmings in a 1/3U box that with a price that’s barely in 3 figures. But the TubePRE is definitely all-pro, starting with a dual-servo (no capacitors) gain stage that lets you boost the program signal to smoking hot levels without significantly increasing the background noise.
The 12AX7 vacuum-tube-based preamp includes a Gain control and a Tube Drive control that lets you decide how much signal to put through the tube. You get 48V phantom power, a 80 Hz high-pass filter, -20 dB pad, and polarity-reverse switch, just like with the big preamps. And of course, the TubePre delivers the highly prized tube warmth we all love. It even sports an analog, backlit VU meter.
The TubePRE is more than a mic preamp, though. Thanks to separate instrument and mic inputs, it also serves as a dynamite direct box (DI) for guitars and basses. And it’s small enough to carry almost anywhere, although you also can rack-mount it using our optional 3UMR rack adapter.
So if you want to add a little extra "bang" to your audio, get the PreSonus TubePRE. Because dynamite preamps really do come in small packages.
SPECS:
Dual-servo, 12AX7 vacuum-tube-based preamp with:
Tube Drive tube-saturation control
Gain control
48V phantom power
80 Hz high-pass filter
-20 dB pad
Polarity-reverse switch
Backlit VU meter
Clip LED

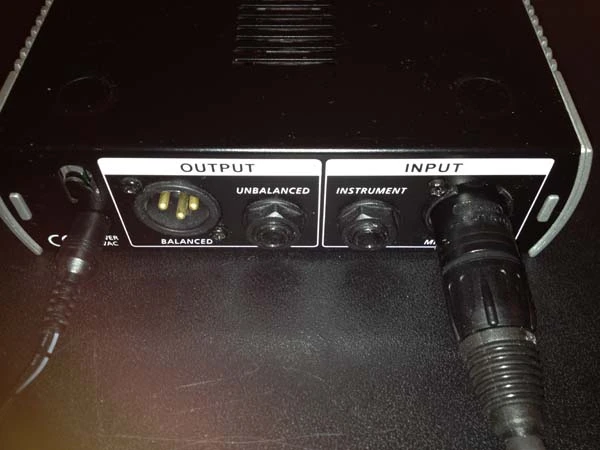

Input/Output
1 unbalanced ¼” instrument input
1 balanced XLR mic input
1 unbalanced ¼” line output
1 balanced XLR line output
Physical
Compact 1/3U rack-mount chassis
External 16 VAC power supply
Optional 3UMR rack adapter
Input
XLR Impedance 1.3k Ohms
High Z Impedance 1 Meg Ohm

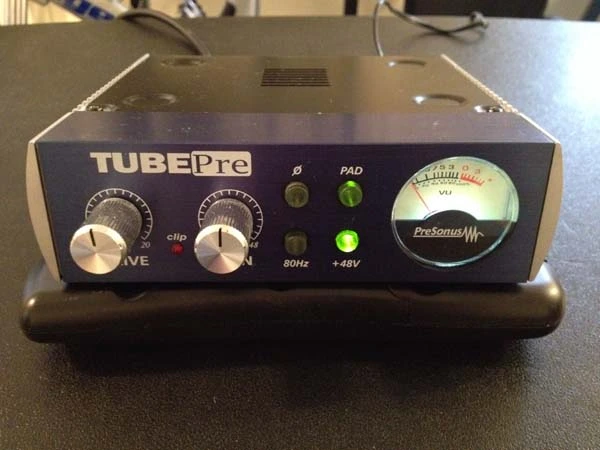

Panel Controls
Tube Drive 0dB to +20dB
Gain 3dB to +48dB
Phase Reversal
-20 dB Pad
+48V Phantom Power
80Hz Rumble Filter
Meters
Blue Backlit VU
Output
XLR Balanced 51 Ohms Impedance
1/4" TRS Unbalanced 51 Ohms Impedance
Performance
THD+Noise (Unweighted) 0.05% at 0dB Tube Drive
10% at 30dB Tube Drive
Noise Floor -98dB
Signal To Noise >95dB
Power Supply Rejection >98dB
Amplifier Type Dual-Servo
Power Supply
Type Linear
Input 16VAC/1000mA (factory configured)
Power 16 Watts
Physical
Weight 5lbs.
Dimensions 5.5 x 5.5 x 1.75
Mounting Universal Rack Tray Insert
Chassis Steel
Panel Brushed Aluminum
Sides Cast Aluminum
