help with phantom supply in microphone

  • Thread starter Thread starter nandax
  • Start date Start date
N

nandax

New member
I'd like to power electret microphone (ECM-10 SW)
and connecting with mic pre amp (M040)
before it goes to speaker circuit

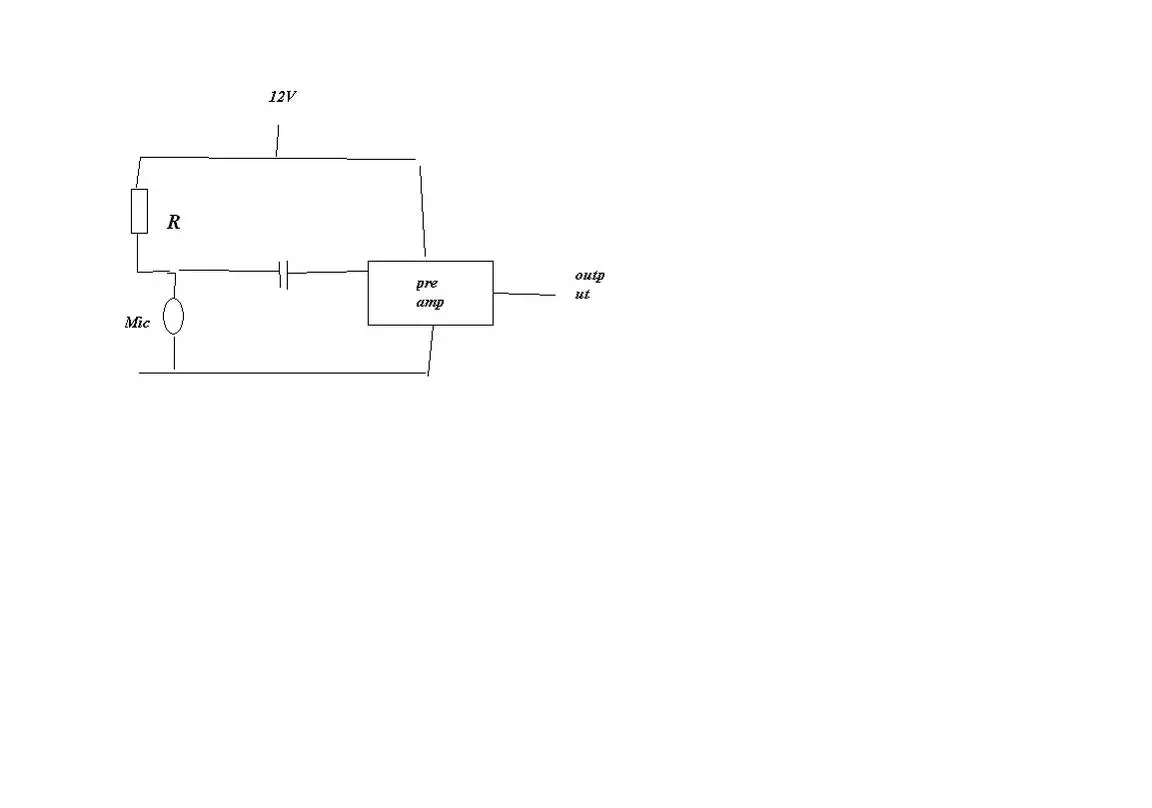

i attached also the circuit
because the microphone actually has XLR connector, so i connect pin 1 and 3 together to the ground in the schematic.
when I tried o replace the mic with function generator, it worked, i mean I can hear the sound of 1 Khz i applied.
but when I used the microphone , i couldn't hear anything..
please help me. i dont know is it because the connection? or do i have to apply 12 V to pin 3 also?
can somebody give suggestion to my circuit?
thanks..


Attachments

  • mic-pic.webp
    4.4 KB · Views: 60
Although some mics will work with power only on one pin or the other, normally, phantom power should be applied to both signal pins.
