MOTU Audio Express
6-input, 6-output audio interface for Mac and Windows
6 x 8 physical input/output channels - all channels are available simultaneously and operate independently
Hybrid FireWire/USB 2.0 connectivity - connect to your Mac or PC via either bus-powered Firewire or hi-speed USB2
8-bus digital mixer - routes and mixes all six inputs to any output pair
Four separate mixes - each output pair (main outs, line outs, S/PDIF out, and phones) can have a completely different mix of all six inputs, with or without computer tracks
Two mic/guitar combo jacks - provide hi-Z 1/4" guitar input or XLR mic input with phantom power, 20dB pad, Precision Digital Trim, and plenty of gain.
Stereo analog inputs - on line-level, balanced TRS quarter-inch jacks. Great for keyboards or other line level-input signals
Stereo main outs - on balanced TRS quarter-inch jacks. Connect directly to powered speakers (or other line-level analog destination)
Stereo 24-bit 96kHz S/PDIF digital in/out
Stereo headphone output on quarter-inch jack with independent volume control
Support for standard sample rates up to 96kHz
Precision Digital Trim - digitally controlled analog trim on all inputs provides adjustments in approximately 1dB increments, so you can fine-tune the balance of your inputs and then save/recall trim configurations

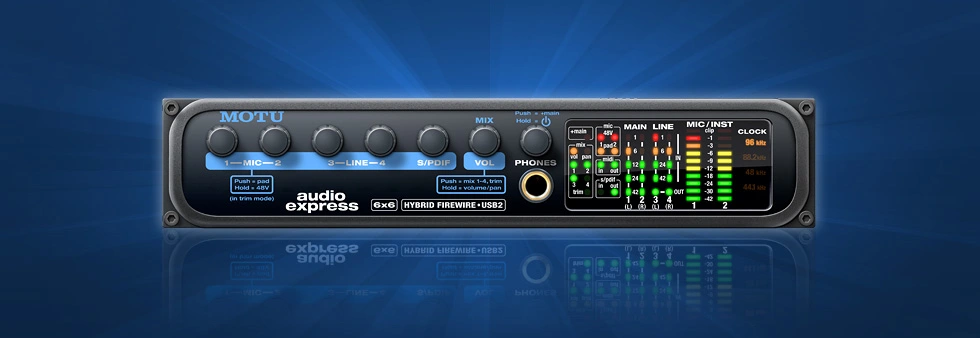

Front-panel mixing and control - each input has its own dedicated volume knob Control multiple mixes with clear feedback from front panel LEDs and metering
CueMix FX cross-platform mixing software - attractive on-screen graphic mixing with an instrument tuner and audio analysis tools including real-time FFT display, spectrogram "waterfall" display, oscilloscope, X-Y plot and linear or polar phase analysis
Stand-alone operation - bring the Audio Express to your gig, with or without a computer. Just plug in the included power adapter and you are ready to go. Need to tweak the mix? Just turn the front-panel knobs
Front panel volume control of main outs and headphone jack
Expandable - add additional interfaces for more I/O as your needs grow
Time code support - directly resolves to (or generates) time code via any quarter-inch input or output, without the need for an extra synchronizer
Direct Digital Synthesis (DDS) - a DSP-driven phase lock engine and internal clock source that produces imperceptibly low jitter characteristics (below the noise floor), even when
the Audio Express is resolved to an external clock source via SMPTE time code
Sample-accurate MIDI - connect a MIDI controller and/or sound module with no separate interface needed. MIDI I/O is sample-accurate with supporting software
Foot switch input - connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software
DC-coupled TRS outputs - can be used with Volta (sold separately) to manipulate and sequence voltage-controlled modular synthesizers from a host DAW
Plug-and-play operation with your Mac or PC via FireWire or USB2 - compatible with all current and recent generation Macs and PCs
Includes native 32- and 64-bit drivers for Mac OS X and Windows 7/Vista, including ASIO, WDM, Wave, Core Audio, and Core MIDI. Supports all popular Mac and Windows audio software.
100% compatible with all host-based effects processing in today's popular audio programs
Includes AudioDesk full-featured sample-accurate workstation software for the Mac with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync
Bus-powered FireWire operation. No need for external power when operating as a FireWire interface connected to a computer. A power supply is included for stand-alone operation
Chassis dimensions, excluding rack ears and front and back panel knobs and connectors: 9.5 x 7 x 1.75 inches. Knobs and connectors extend up to 0.5 inch from front and back panels, adding 1 inch to depth. With rack ears attached, fits one half of a standard 19 inch rack at 1U high.
