6-ply, 7-ply, ETC.

  • Thread starter Thread starter cubanorocker316
  • Start date Start date
tilinmyowngrave said:
I'm definitely gonna try the kick mallet thing, and you have eased my curiosity of why paiste cymbals look the way they do! Heres my question. From what I've heard (and I can't confirm this), bubinga and birch have boosted high end. Then why do I hear people say they sound better low? Shouldn't drums with more high end be tuned higher? Or are these people wrong? And does the thickness of a drum shell change its tuning range? For example, will a thin shell be able to be tuned higher/ and or lower than a thicker shell?


The problem is, the question your asking is partially "relative". What I mean by that is, some people like drums tuned low, some like drums tuned high.... after you get past the facts that thinner shell has a lower timbre than a thicker shell, it's all opinion really.

I mean - Danny Carey is using a metal kit with extremely thin shells, made up of small drums, and tuned low. Now, if he tuned that kit higher, it would be a LOT louder. Why? Because it would have a higher pitch, which is easier for the human ear to hear, and that's the point that BradC is missing, and it is why John Wyre's statement is wrong.

Otherwise - why would Drum Workshop make drums that were "quieter" than Pearl or Tama?

I mean, Pearl could come out with an advertisement that said:
Pearl Export​
The Loudest Fucking Drums on the planet
because Our Shells are the thickest!"


And you'd hear things like "DW - quiet drums made just for pussies!"


The more plies that are applied/layered in a wooden shell will raise the natural fundamental tone/timbre of the drum.
Also, the length of the shell will play into this.

an 8-ply 8"x12" will not have the same timbre as a 12"x12" of the same number of plies.

More wood = higher pitch.

You can verify this with two pieces of plywood. a 1/4" plywood will have a lower pitch or tone than a 3/4" piece.

The thickness doesn't change the actual tuning range, but it dictates which part of the tuning range that particular shell sounds better tuned in. Does that make sense?


Let's say that a 14" diameter tom's optimum tuning range is between 5 and 10 (just using these numbers to give a low and high tuning range and nothing more - they don't relate to anything else in regard to this - I'm not talking about any kind of tuning device numbers.)

My opinion (and notice that it's my opinion, but it's based on years of experience) is that a thinner shelled drum would sit better in the 5-7 portion of the range, while a thicker shelled drum would sit better in the 8-10 portion of the range.

Understand what I'm saying?

So, I would agree that a drum with more plies and of a wood that has more grain density and a higher timbre should be tuned higher - but then again, I think all drums should be tuned a little higher.


The standard wood used for drum making is furniture grade Maple. It doesn't sound bad, but in all honesty it probably isn't the best wood for drums simply because it has such a pronounced midrange. Birch doesn't have "more high end", it has less midrange, which makes it so great for mic'ing; it's been called the "pre-equalized" wood, the lows and highs stand out better than the midrange does.

I don't have any experience with Bubinga except as an outer layer on a Sonor Snare that I had, and I would say that 1 ply played virtually no part in that drums sound....now, if it had been on the inside of the drum - then it would have made a difference.


As for dropping the mallet.

Drop the mallet 1" and see if the Kick drum doesn't sound a lot more musical.




Tim

Tim Brown

Pardon my skimming, Tim...

Is it actually possible for you to drop the mallet enough to play within 2-6" of the bearing edge? My mallet for some reason I can barely get to go down a full inch. I mean, I'm really interested in trying it out, I'm about to go prop up my bass drum just to see (though I can't help but wonder if my patch in the middle of the bass drum will hamper the experiment), but how exactly are you doing this as a consistent thing?

Just curious...

Joe

Yeah, it DOES seem more musical...

If I can find a way to do this consistently I think it will be awesome. :)

With as hard as I play at times, I'm wondering if it will be harder on the head though, not being hit in the center...

Drummyjoey said:
Yeah, it DOES seem more musical...

If I can find a way to do this consistently I think it will be awesome. :)

With as hard as I play at times, I'm wondering if it will be harder on the head though, not being hit in the center...


The point is, if you just drop the mallet 1 inch, you get it closer to the area that has all of the tone in it.



Tim

Last edited:
wow... the mallet thing works :p . O well, my axis pedals are pissing me off. Yes, they are very responsive. But I still havent figured out how to adjust them, despite countless hours of trying, and on my second bass drum the thing fell apart... I wasnt even playign hard, i wa splayign softly and then the spring just came loose and it took forever to get it back, and now it squeaks... Im seriously cosnidering swapping these axis for a pair of DW 5000's. I know you use axis, tim, so do you know what I'm talking about, or am I the only person who ahs these problems?

tilinmyowngrave said:
wow... the mallet thing works :p . O well, my axis pedals are pissing me off. Yes, they are very responsive. But I still havent figured out how to adjust them, despite countless hours of trying, and on my second bass drum the thing fell apart... I wasnt even playign hard, i wa splayign softly and then the spring just came loose and it took forever to get it back, and now it squeaks... Im seriously cosnidering swapping these axis for a pair of DW 5000's. I know you use axis, tim, so do you know what I'm talking about, or am I the only person who ahs these problems?



Of course the mallet thing works.


Tighten the springs down as tight as they will go. It won't just come off then. :p


Tim

Tim Brown said:
Of course the mallet thing works.


Tighten the springs down as tight as they will go. It won't just come off then. :p


Tim

Theres another problem. They are so fuckign ahrd to adjust. With my odl pacific pedal, adjusting it was no problem. The Axis is way more confusing. I don't know how toa djust ANYTHING with these damn pedals :mad: . ANd the only person I know who is handy enough to fix them is on bad erms with me (well, not yet, but next time I talk to him).

Tim Brown said:
The point is, if you just drop the mallet 1 inch, you get it closer to the area that has all of the tone in it.



Tim

Oh, but mine really doesn't have that much room for adjustment. I guess maybe others do...I seem to remember my old mallets having plenty of room to play with. Oh well...

I thought you actually meant that we should play much lower even. I got that from when you said this:

"Your kick mallet really needs to play in the same playing zone that a tympani mallet would strike a Tympani - which would typically be between 2" and 6" from the bearing edge of the drum. (try it, it will change the sound of your kick immensely. )"

Drummyjoey said:
Oh, but mine really doesn't have that much room for adjustment. I guess maybe others do...I seem to remember my old mallets having plenty of room to play with. Oh well...

I thought you actually meant that we should play much lower even. I got that from when you said this:

"Your kick mallet really needs to play in the same playing zone that a tympani mallet would strike a Tympani - which would typically be between 2" and 6" from the bearing edge of the drum. (try it, it will change the sound of your kick immensely. )"


I keep forgetting you guys are using smaller drums.

See, with the 28" kick drum, if I drop the mallet 1" lower than I normally would have it set, I'm virtually "in the zone" on that sized drum.

The point is, the ideal point of the mallet hitting the kick head, is either above (say you are using an 18" drum, it would be easier to hit above thn below the center) or below center, but not directly in the center of the drum.

I do know some drummers who have literally cut their mallet shafts down to only being about 3" long, but to me that was kind of goofy. (They were Death metal drummers trying to get an edge with the Heel-Toe technique.)


Tim

Yeah, I almost mentioned about you having the 28" kicks and that changing things, though I wasn't sure. Mine is a 22"...

Anyway, thanks for the cool advice. I'll work something out.

Joe

this might seem like an odd question but considering that Tim doesn't seem to mind answering questions with long, informative answers, i'll ask it anyways...

does this "in-the zone" apply to snare and toms as well?

if it does for the bass drum, it would be logical to think so for the rest of the kit...no?

PS: this thread has gone WAY off topic but whatever, we're all learning here :p

RVLVNGDRS said:
this might seem like an odd question but considering that Tim doesn't seem to mind answering questions with long, informative answers, i'll ask it anyways...

does this "in-the zone" apply to snare and toms as well?

if it does for the bass drum, it would be logical to think so for the rest of the kit...no?

PS: this thread has gone WAY off topic but whatever, we're all learning here :p


Well, it might. The thing is - because the kick drums are essentially the same size as a small tympani, it makes a definite difference that you can hear, and as the drum gets smaller, the "node & zone" don't seem to be as prevalent for some reason. I will tell you this - if you use diplomat heads on the top and bottom of an 18" or 20" floor tom, tune the resonant head up about a third higher than the batter head so that the drum sounds like a tympani - and play with mallets, you will hear the difference.

I'm getting ready to add a 22" bass drum that will have very thin heads on it - I'm going to mount it on 4 floor tom legs so it's upright like a floor tom, and use it like it's a tympani on the hi-hat side of my kit.


Tim

I just tried it on my 16" floor tom and it definitely does make a difference.

Amazing...

OK tim, heres another question... Why are axis pedals so fucking confusing to adjust? Is it just me? I've tried doing everything, but I can't change the spring tension. :mad:

tilinmyowngrave said:
OK tim, heres another question... Why are axis pedals so fucking confusing to adjust? Is it just me? I've tried doing everything, but I can't change the spring tension. :mad:

The spring tension is the screw on the bottom left. There's a nut above and below the L-shaped retainer. You have to unloosen the top nut before you can either tighten or loosen the bottom one.



Tim

Last edited:
ok but now this gets weird cause i've read in many places that you can tell if a drummer has experience to a certain extent if you look at his/her drums heads...if the stick marks are in a small circle in the CENTER of the drum, then they're "good"

RVLVNGDRS said:
ok but now this gets weird cause i've read in many places that you can tell if a drummer has experience to a certain extent if you look at his/her drums heads...if the stick marks are in a small circle in the CENTER of the drum, then they're "good"


No, that's not wierd.
That means the drummer is hitting the center accurately.

Admittedly, it is kind of hypocritical, that the center is somewhat a "dead" spot, while closeto the rim has more "tone", but the reality is that most drummers don't know about nodes in the heads (there are also nodal points on the drumshell as well) because they have never had any training as a symphonic percussionist.


Tim

Tim Brown said:
The spring tension is the screw on the bottom left. There's a nut above and below the L-shaped retainer. You have to unloosen the top nut before you can either tighten or loosen the bottom one.



Tim

Not to be rude Tim, but I have a few questions...
Question 1: What the fuck is a retainer?
Question 2: What the fuck is a nut?
Question 3: What the fuck is a screw?
Question 4: Where the fuck are the things you mentioned?

tilinmyowngrave said:
Not to be rude Tim, but I have a few questions...
Question 1: What the fuck is a retainer?
Question 2: What the fuck is a nut?
Question 3: What the fuck is a screw?
Question 4: Where the fuck are the things you mentioned?

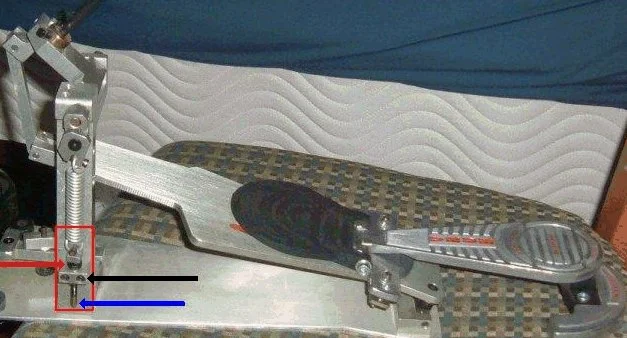

I Color coded the picture for you.



Retainer - The Black Arrow points to the Retainer.
Nut - The Red Arrow points to the Nut.
Screw - The Blue Arrow points to the Screw.



The Spring Tension Retainer is the section that sticks out off the side of the Pedal's upright shaft. The Spring Tension Screw passes through the Retainer, and should have THREE Nuts on it. 2 hexagon shaped nuts for using a small hexnut/crescent wrench on. These are ABOVE the Retainer. There should also be a Wingnut located below the Retainer.
The Spring attaches directly to the Spring Tension Screw.


So, you need to make sure that you loosen the two nuts on each side of the Retainer of these nuts...so 1 Hex nut (on top of the Retainer) gets moved up, and 1 Wingnut (below the Retainer) gets moved down. This will allow you to adjust the pedal's tension.

You set the Tension with the Wingnut.

Once you have the Spring Tension adjusted to the level you want, then you tighten the hexnut against the Retainer; this locks the tension in place.
Personally, I say tighten it all the way, and build your feet up.


Tim


Attachments

  • axis_pedal-2.webp
    46.2 KB · Views: 37
Tim Brown said:
I Color coded the picture for you.



Retainer - The Black Arrow points to the Retainer.
Nut - The Red Arrow points to the Nut.
Screw - The Blue Arrow points to the Screw.



The Spring Tension Retainer is the section that sticks out off the side of the Pedal's upright shaft. The Spring Tension Screw passes through the Retainer, and should have THREE Nuts on it. 2 hexagon shaped nuts for using a small hexnut/crescent wrench on. These are ABOVE the Retainer. There should also be a Wingnut located below the Retainer.
The Spring attaches directly to the Spring Tension Screw.


So, you need to make sure that you loosen the two nuts on each side of the Retainer of these nuts...so 1 Hex nut (on top of the Retainer) gets moved up, and 1 Wingnut (below the Retainer) gets moved down. This will allow you to adjust the pedal's tension.

You set the Tension with the Wingnut.

Once you have the Spring Tension adjusted to the level you want, then you tighten the hexnut against the Retainer; this locks the tension in place.
Personally, I say tighten it all the way, and build your feet up.


Tim

Now it seems understandable. I'll try it when I get on my drum set. Thanks for the info!
