yet another diffusor

[foreverain4]

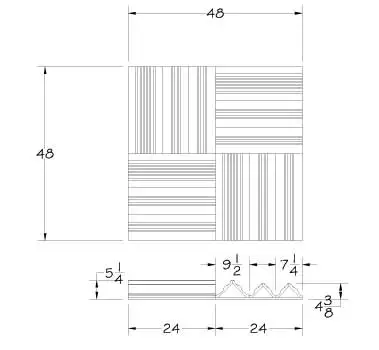

in my undying quest for creating a diffusor, i have run across a bunch of moulding that has been given to me. i had an idea of mounting these in 2 ft x 2 ft panels. all the moulding is maple. what do you guys think of using wood for diffusion? and what about the design? any help would be greatly appreciated.





lynn
www.therecordinghouse.com



[foreverain4]

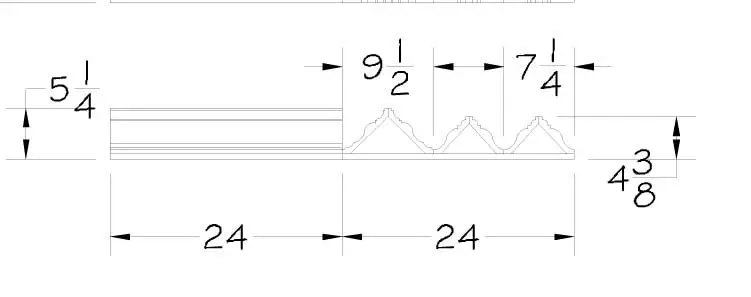

another picture



[knightfly]

Lynn, wood is fine for diffusors - some of the commercial ones are made of MDF and painted.

The limited depth of this design would only diffuse higher freqs, I'm guessing down to maybe 1000-1500 or so at best. If you need lower, you need depth. Commercial QRD's at 16" max depth only go down to around 300.

A lot depends on what you need, and where - after the basic modal checks, it's either a lot of listening/tweaking, analysys software, or both... Steve



[MikeA]

???

would the inside of those be filled or left vacant? If filled, with what? And, if they were filled the affected frequencies would be raised, right?



[foreverain4]

i dont know, i was hoping to determine whether i would put fiberglass insul. behind them. i am not sure how much good that would do. the idea in using wood was from another discussion about wood floors "sounding good".



[John Sayers]

Lynn- yes they will act as diffusors but only in the higher frequencies. How about you alternate them on a wall with 2' x 2' cloth covered fiberglass like a chess board.

cheers
John



[foreverain4]

actually, take a look at my studio

www.therecordinghouse.com/studiopicsupdate

i have auralex on the walls already in a checkerboard fashion. if there is foam on one wall, the wall parallel to it doesnt have any, and that is where i would put the diffussors. but, only in the bottome ring of foam.
