Guitar wiring diagram...

[scottboyher]

I have an old Westone guitar that has a Humbucker in the bridge postition and tow single coils in the other positions. It has a switch for each pickup. The humbucker switch is a three position switch and the other two are two postitions switches. It has a volume and two tone knobs.

Can anyone direct me to a wiring diagram for this setup or do any of you have this current setup on your guitar? Serious help would be appreciated.. I have searched everywhere and all I can come up with is a diagram for the five way switch on a strat setup..

Thanks!



[scottboyher]

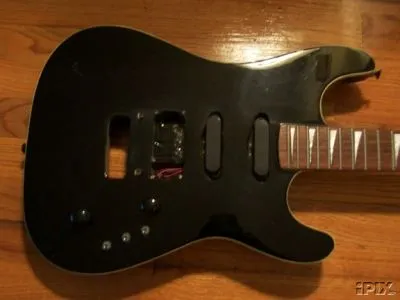

Here is a pic of a similar lay out... Except there is three knobs on mine..

And does anyone have any tip on soldering? I have trouble keeping the solder to adhere to the metal of the pots..



[bdbdbuck]

Scott,
Have you tried browsing through the diagrams at guitar electronics? Here's a link just in case.

www.guitarelectronics.com

The pot has to be SUPER clean and free of any oils etc., maybe even scratch it a bit with sandpaper. It needs to be hot enough to melt the solder, but other than that it should stick. You probably already knew all that stuff though.


bd
