DIY Hammond M3 tube amp for guitar

  • Thread starter Thread starter timboZ
  • Start date Start date
timboZ

timboZ

New member
Is this a dumb idea.
I have an Hammond M2 and a M3 sitting in the garage that my wife wants out.

Would it be possible to use the amp for a low watt guitar amp.
Or would it just be a waste of time.

most likely not worth the effort... first there will be an input impedence problem to work out.... to sat nothing of the levels expected by the amp...

I bet it would make a kick ass amp. I'd take the transformers and tube sockets and rearrange the components. I just built this one that way out of an old tube stereo.


Attachments

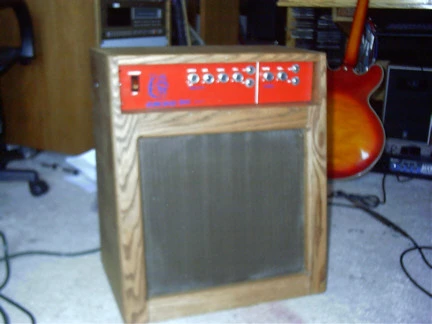

  • Amp Front 2.webp
    Amp Front 2.webp
    23 KB · Views: 81

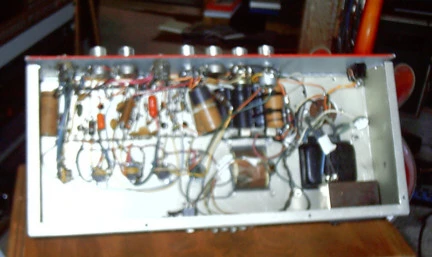

  • Amp Insides 1.webp
    Amp Insides 1.webp
    27.4 KB · Views: 71
  • Logo.webp
    21.2 KB · Views: 71
