My Near-Field Monitor Shootout

C

clivus

New member
I decided to bite the bullet and buy some REAL monitors after years of cobbling together monitor systems from various home stereo components. As I was going to be passing thru St. Louis today, I called ahead to the Guitar Center, where a knowledgable salesman named Scott agreed to arrange a shootout of powered monitors with 8" woofers. I took several CDs of familiar material and a sound pressure level meter and spent about an hour evaluating offerings from KRK, Behringer, Mackie, M-Audio, JBL and Yamaha. I had a budget of $700. My shootout winner (and newest residents of my mixing console) are a pair of Yamaha HS80M's. To my ears, they had the flattest response and clear, un-hyped bass. The (minor) downside--when no music is playing thru them they have a noticeable hum. I remixed a few things this evening and am pleased with how well the mixes translate to other systems, boom boxes etc.

clivus said:
The (minor) downside--when no music is playing thru them they have a noticeable hum.
Click to expand...

This may be a simple case of removing the shield connection on the XLR (if you are using the balanced connections) at the speaker end of the cable. You may have a slight earth loop.

Alan.

witzendoz said:
This may be a simple case of removing the shield connection on the XLR (if you are using the balanced connections) at the speaker end of the cable. You may have a slight earth loop.

Alan.
Click to expand...

Thanks for this suggestion. I am using the unbalanced inputs directly out of a switching box (for A/B-ing my mixes) which is hooked up to a Lexicon Omega and a CD player. How would I check for an earth (ground?) loop with this setup?

You could put one of these between the switch box and the monitors, that way the signal ground and signal positive are both lifted via a transformer.

Alan.

Murdersgalore said:
You cant disconnect the ground on an unbalanced setup because the ground is also the negative. Are you using RCA's?
Click to expand...

The output jacks of the Lexicon and the unbalanced input jacks of the monitors are both 1/4". The switchbox has RCA jacks.

Last edited:
Murdersgalore said:
I try to avoid using RCA as much as possible. They are usually noisy.
Click to expand...

Wrong: A good RCA connection is no more noisier than a Jack plug. The problem is you have to have a good RCA connection not some cheap cable that came free with the DVD Player.

Alan.

witzendoz said:
Wrong: A good RCA connection is no more noisier than a Jack plug. The problem is you have to have a good RCA connection not some cheap cable that came free with the DVD Player.

Alan.
Click to expand...

I will try this--I have some well-shielded RCA cables around somewhere that can be adapted to 1/4" at one end. Thanks for the suggestions!

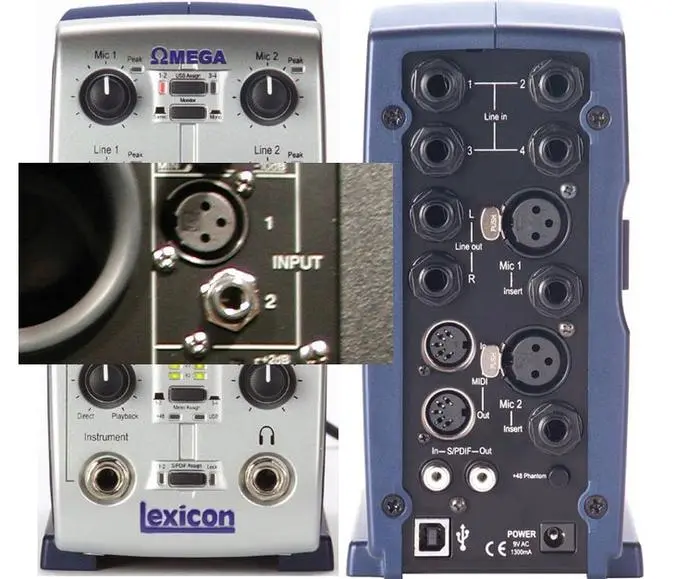

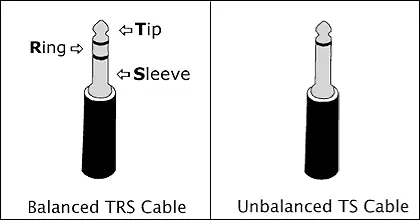

The Lexicon Omega outs are TRS...tip, ring, sleeve
The Inputs to the Yamaha HSM80 are XLR or TRS

Try to use TRS cables?

Then use good CD player cables to connect the CD to the Lexicon.

You'll probably be good to go.


Attachments

  • lexicon omega.jpg
    lexicon omega.jpg
    59.2 KB · Views: 20
CoolCat said:
The Lexicon Omega outs are TRS...tip, ring, sleeve
The Inputs to the Yamaha HSM80 are XLR or TRS

Try to use TRS cables?

Then use good CD player cables to connect the CD to the Lexicon.

You'll probably be good to go.
Click to expand...

Ahhhh--got it! thanks!
